2-1/2 350AST-BG DOUBLE CHECK VALVE ASSEMBLY W/GRVD BUTTERFLY VALVES, LEAD FREE

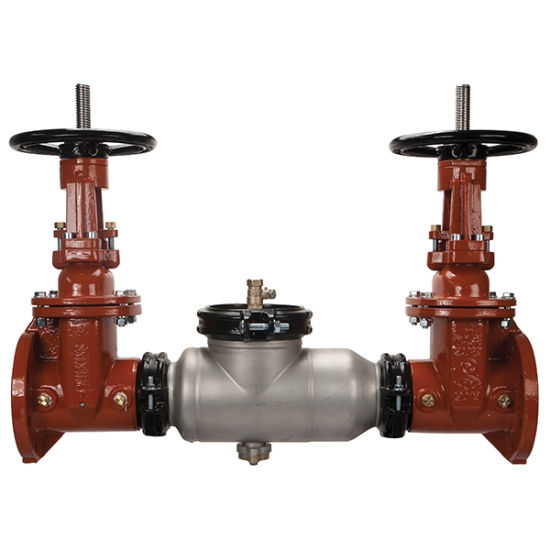

Wilkins 350AST Lead Free 304L Stainless Steel Backflow Preventer Double Check Valve Assembly With Grooved End Butterfly Valve And Integral Supervisory Switch, 2-1/2 IN, Grooved End
- Manufacturer: Zurn Industries Limited
- Brand: Wilkins
- MGPN: 250350ASTBG
- MPN: 212-350ASTBG
- UPC: 61205223389
- Min. Order Qty: 1
- Qty. Interval: 1
-
Availability:
- See All Availability
-
Price:
The Zurn Wilkins 350AST double check backflow preventer with stainless steel body provides low hazard protection with a corrosion-resistant and light weight design.
| Item Name | : | Double Check Valve Assembly With Grooved End Butterfly Valve And Integral Supervisory Switch |
| Type | : | Backflow Preventer |
| Series/Model | : | Model 350AST |
| Nominal Size | : | 2-1/2 IN |
| Connection Type | : | Grooved End |
| Pressure Rating | : | 175 PSI |
| Temperature Rating | : | 140 DEG F |
| Body Material | : | 304L Stainless Steel |
| Stem Material | : | Stainless Steel |
| Trim Material | : | EPDM Disc |
| Seal Material | : | EPDM |
| Material Standard | : | Stem: ASTM A276 |
| Industry Standards | : | ASSE Listed 1015, IAPMO Certified, Certified To NSF/ANSI/CAN 61, CSA Certified, AWWA Compliant C510 And C550, FM Approved, UL/CUL Classified, FDA Approved, UPC Listed, AWWA C606 |
| Width | : | 28-3/4 IN |
| Height | : | 13-1/4 IN |
| Lead Free | : | Yes |
- Short lay-length for small space installation
- Reliable performance and improved flow characteristics from patented compound check, allowing for installation in lower-pressure systems
- Ideal for any backflow replacement
- Lower maintenance costs from corrosion-resistance of stainless body
Instruction/Installation Manual
