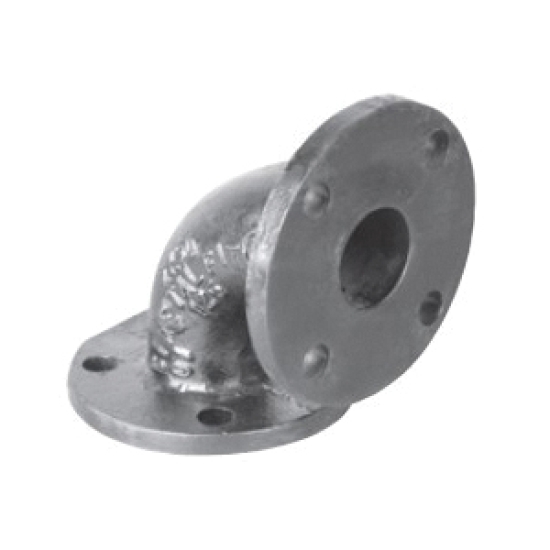

2-1/2 GALV FLGD 90 ELL
WARD MFG 2D.NFL 90 DEG Straight Elbow, 2-1/2 IN, 7 IN OD Flange, Flanged, Class 125, 4 -Bolt, Cast Iron
- Manufacturer: Ward Manufacturing
- Brand: WARD MFG
- MGPN: ELL GC FLGD 90 2-1/2
- MPN: 2D.NFL
- UPC: 66246744675
- Min. Order Qty: 1
- Qty. Interval: 1
-
Availability:
- See All Availability
-
Price:
Ward cast iron flanged fittings are made in accordance with ASME B16.1 with threads that meet the requirements of ASME B1.20.1.
WARD MFG 90 DEG Straight Elbow, 90 DEG Straight Elbow, Pressure Class: Class 125, 2-1/2 IN Nominal, 7 IN Flange Outside Diameter, Connection Type: Flanged, 0.31 IN Wall Thickness, 0.69 IN Flange Thickness, 5-1/2 IN Bolt Circle Diameter, 4 Bolts, 3/4 IN Bolt Hole Diameter, Cast Iron, Material Standard: ASTM A126, ASTM A153, Finish/Color: Galvanized, 175 PSI Maximum Pressure, -20 To 150 DEG F, Industry Standards: ASME B16.1, ASME B1.20.1, Other Physical Dimension: 5 IN Center To Face, 0.63 IN Bolt Diameter, 2-1/2 IN Length Of Bolt, 21.000 LB Weight
| Item Name | : | 90 DEG Straight Elbow |
| Pressure Class | : | Class 125 |
| Nominal Size | : | 2-1/2 IN |
| Flange Outside Diameter | : | 7 IN |
| Connection Type | : | Flanged |
| Wall Thickness | : | 0.31 IN |
| Flange Thickness | : | 0.69 IN |
| Bolt Circle Diameter | : | 5-1/2 IN |
| Number Of Bolts | : | 4 |
| Bolt Hole Diameter | : | 3/4 IN |
| Material | : | Cast Iron |
| Material Standard | : | ASTM A126, ASTM A153 |
| Finish/Color | : | Galvanized |
| Maximum Pressure | : | 175 PSI |
| Temperature Rating | : | -20 To 150 DEG F |
| Industry Standards | : | ASME B16.1, ASME B1.20.1 |
| Other Physical Dimension | : | 5 IN Center To Face, 0.63 IN Bolt Diameter, 2-1/2 IN Length Of Bolt |
| Weight | : | 21.000 LB |
- Wide range of products for sprinkler systems, drainage systems other installations
- Accurate form, length and straightness on threads for easy engagement
- Chamfered openings for fast, easy engagement and assembly
- Precision machining
- Rust-resistant coating
