1/2 COP VLV BA BR FP PXF 24030

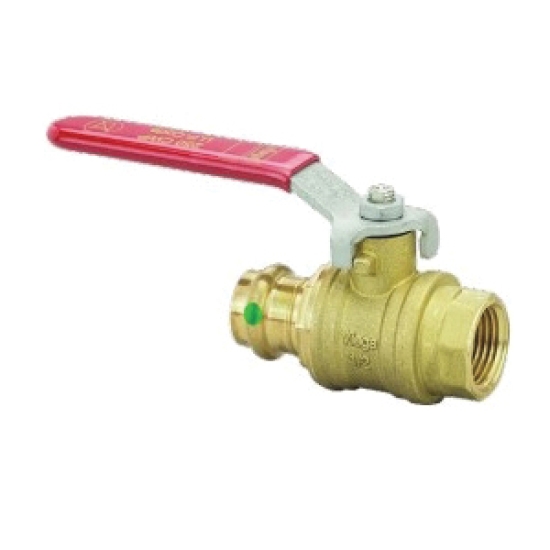

Viega ProPress® Model 2973.1 24030 Ball Valve, 1/2 IN, Press X FPT, 300 PSI Operating, 300 PSI (CWP), Brass Body
- Manufacturer: Viega LLC
- Brand: Viega
- MGPN: VIEGA PP VLV BA BR FP PXF 1/2
- MPN: 24030
- UPC: 691514240305
- Min. Order Qty: 1
- Qty. Interval: 1
-
Availability:
- See All Availability
-
Price:
Viega ProPress model 2973.1 is a two-piece, full port ball valve intended for hydronic and non-potable applications. The ball valve features EPDM sealing elements, EPDM stem seals and Viega's smart connect technology for easy identification of unpressed connections during pressure testing.
Viega ProPress® Ball Valve, Type: 2-Piece, Full-Port, ProPress®, Ball Valve, Series/Model: Model 2973.1, 1/2 IN Nominal, Connection Type: Press X FPT, 300 PSI Operating, 300 PSI (CWP), 0 - 200 DEG F, Brass Body, Non-Lockable Handle Operator, Steel Handle, Brass Stem, Reinforced PTFE Seat, EPDM Seal, Material Specification: UNS C37700, Finish/Color: Zinc Plated Handle, Chrome Plated Ball, Industry Standards: MSS SP-110, IAPMO/ANSI Z1157, NSF Certified, Other Physical Dimension: 3.94 IN Handle Length, 1.69 IN Inlet Center To Top Of Handle, 1.58 X 1.16 IN Center To End, Additional Specifications: Ball Material: Brass, Handle Cover Material: Polyvinyl, 0.580 LB Weight
| Sub Brand | : | ProPress® |
| Item Name | : | Ball Valve |
| Type | : | 2-Piece, Full-Port |
| Series/Model | : | Model 2973.1 |
| Nominal Size | : | 1/2 IN |
| Connection Type | : | Press X FPT |
| Pressure Rating | : | 300 PSI Operating, 300 PSI (CWP) |
| Temperature Rating | : | 0 - 200 DEG F |
| Body Material | : | Brass |
| Operator Type | : | Non-Lockable Handle |
| Handle Material | : | Steel |
| Stem Material | : | Brass |
| Seat Material | : | Reinforced PTFE |
| Seal Material | : | EPDM |
| Material Specification | : | UNS C37700 |
| Finish/Color | : | Zinc Plated Handle, Chrome Plated Ball |
| Industry Standards | : | MSS SP-110, IAPMO/ANSI Z1157, NSF Certified |
| Other Physical Dimension | : | 3.94 IN Handle Length, 1.69 IN Inlet Center To Top Of Handle, 1.58 X 1.16 IN Center To End |
| Additional Specifications | : | Ball Material: Brass, Handle Cover Material: Polyvinyl |
| Weight | : | 0.580 LB |
- Smart connect technology
- For non-potable application
- Press connection, female pipe thread
- Full port
- EPDM sealing element, non-lockable metal handle
