1/2 COPPER PROPRESS P X P BALL VALVE

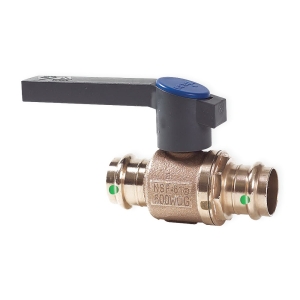

Viega ProPress® 2970 Bronze Lever Handle 2-Piece Full-Port Ball Valve, 1/2 IN, Press
- Manufacturer: Macomb Group Approved
-
Brand:
Macomb Group Approved™
MACOMB GROUP APPROVED™ identifies a product sold by The Macomb Group that complies with the form, fit, and function of the products responsive to your search request.
- MGPN: 050CUPPBV
- MPN: 19678
- UPC: 691514196787
- Min. Order Qty: 1
- Qty. Interval: 1
-
Availability:
- See All Availability
-
Price:
ProPress® 2-Piece Full-Port Ball Valve, Series/Model: Model 2970, Nominal Size: 1/2 IN, Connection Type: Press, Pressure Rating: 200 PSI Operating, 600 PSI (WOG), Temperature Rating: 0 - 250 DEG F, 0.65 IN Opening, Bronze Body Material, Lever Handle Operator Type, Handle Material: Plastic POM, Trim Material: Brass Ball, Seat Material: Reinforced PTFE, Seal Material: EPDM, Finish/Color: Chrome Plated Ball, Industry Standards: MSS SP-110, NSF 61 Certified, UPC Listed, CSA Certified, 3.35 IN Width, Lead Free: No, Other Physical Dimension: 2.54 IN Inlet Center To Top Of Handle, 3.86 IN Handle Length
| Sub Brand | : | ProPress® |
| Item Name | : | Ball Valve |
| Type | : | 2-Piece, Full-Port |
| Series/Model | : | Model 2970 |
| Nominal Size | : | 1/2 IN |
| Connection Type | : | Press |
| Pressure Rating | : | 200 PSI Operating, 600 PSI (WOG) |
| Temperature Rating | : | 0 - 250 DEG F |
| Opening Size | : | 0.65 IN |
| Body Material | : | Bronze |
| Operator Type | : | Lever Handle |
| Handle Material | : | Plastic POM |
| Trim Material | : | Brass Ball |
| Seat Material | : | Reinforced PTFE |
| Seal Material | : | EPDM |
| Finish/Color | : | Chrome Plated Ball |
| Industry Standards | : | MSS SP-110, NSF 61 Certified, UPC Listed, CSA Certified |
| Width | : | 3.35 IN |
| Lead Free | : | No |
| Other Physical Dimension | : | 2.54 IN Inlet Center To Top Of Handle, 3.86 IN Handle Length |
| Weight | : | 0.720 LB |
- Blow-out proof stem design
- Smart Connect® feature
Specification
