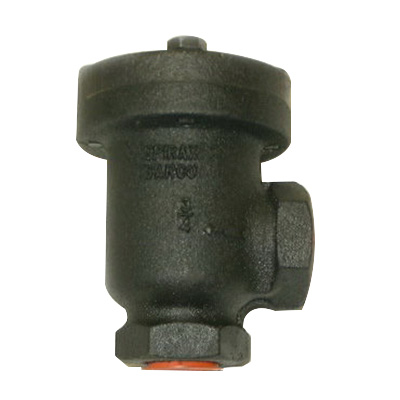

3/4 T250 ANGLE TRAP

The T250 has a welded stainless steel element, which is self-adjusting over the entire operating pressure range and will discharge condensate at approximately 20 DEG F below saturated steam temperature.

Balanced Pressure Angle Flow Pattern Thermostatic Steam Trap, Series/Model: Model T250, Nominal Size: 3/4 IN, Connection Type: NPT, Pressure Rating: 250 PSIG, 0.438 IN Orifice, Cast Iron Body Material, Material Standard: ASTM A126 Grade B, Temperature Rating: 232 DEG C, Length: 3.12 IN, Other Physical Dimension: 4.56 IN Height, Additional Specifications: Capacity: 8500 LB/HR

• The T250 has a welded stainless steel element, which is self-adjusting over the entire operating pressure range and will discharge condensate at approximately 20 DEG F below saturated steam temperature
• ASTM A126 CL grade B cast iron cap
• ASTM A449 carbon steel cap screw
• Stainless steel clad non-asbestos fill cap gasket
• Stainless steel element assembly, bellows, valve head, valve seat, lock washer
• Stainless steel clad valve seat gasket non-asbestos fill
• Forged steel plug

Application: Used in hospital, laundry and kitchen equipment, high capacity process equipment, outdoor applications subject to freezing, applications requiring high air venting capacity on initial start up

• Specification Sheet https://www.macombgroup.com//ASSETS/DOCUMENTS/ITEMS/EN/SpiraxSarco_61707_Specification_Sheet.pdf
