1/4 NIBCO T580-CSR-66

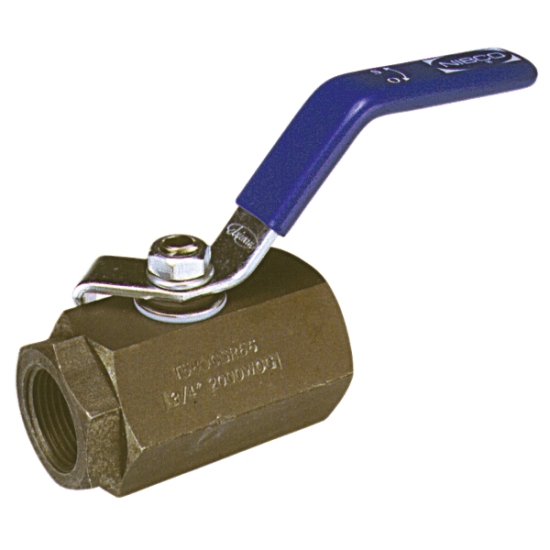

NIBCO T-580-CS-R-66 NL94GI4 Ball Valve, 1/4 IN, FIPT, 1500 PSI (CWP) Non-Shock, Carbon Steel Body
- Manufacturer: NIBCO
- Brand: NIBCO
- MGPN: VLV BA CS T580CSR66 1/4
- MPN: NL94GI4
- UPC: 039923675026
- Min. Order Qty: 1
- Qty. Interval: 1
-
Availability:
- See All Availability
-
Price:
The NIBCO® bar stock carbon steel ball valve provides bubble-tight shut-off at 2000 PSI (size 1/4 - 1 IN) and 1500 PSI (size 1-1/4 - 2 IN). The reinforced PTFE seat ring and stainless steel ball/stem exhibit high chemical-resistance properties and is recommended for process piping. The two-piece valve may be used on hot/cold water, HVAC, and is recommended for process piping, some chemical and utility service applications. It may be used for isolation and throttling (half open to full open only). This valve features threaded ends for easy installation.
NIBCO NIBCO Ball Valve, Type: 2-Piece, Blowout-Proof Stem, Quarter-Turn, Ball Valve, Series/Model: T-580-CS-R-66, 1/4 IN Nominal, Connection Type: FIPT, 1500 PSI (CWP) Non-Shock, 400 DEG F, Carbon Steel Body, Standard Lever Handle Operator, Carbon Steel Handle, Stainless Steel Stem, Stainless Steel Trim, Reinforced RPTFE Seat, Reinforced RPTFE Seal, Material Standard: Ball: ASTM A276/ASTM A351, Belleville Washer: ASTM A686, Body: ASTM A108 Type 1018, Body End: ASTM A108 Type 1018, Gland Washer: ASTM A240 Type 304, Handle: ASTM A283, Handle Nut: ASTM A283, Stem: ASTM A276, Material Specification: Ball: UNS CF8M, Industry Standards: MSS SP-110, Other Physical Dimension: 2.22 IN Inlet Center To Top Of Handle, 4.13 IN Handle Length, Additional Specifications: Ball Material: Stainless Steel, NIBCO, Conventional Port, 0.640 LB Weight
| Item Name | : | Ball Valve |
| Type | : | 2-Piece, Blowout-Proof Stem, Quarter-Turn |
| Series/Model | : | T-580-CS-R-66 |
| Nominal Size | : | 1/4 IN |
| Connection Type | : | FIPT |
| Pressure Rating | : | 1500 PSI (CWP) Non-Shock |
| Temperature Rating | : | 400 DEG F |
| Body Material | : | Carbon Steel |
| Operator Type | : | Standard Lever Handle |
| Handle Material | : | Carbon Steel |
| Stem Material | : | Stainless Steel |
| Trim Material | : | Stainless Steel |
| Seat Material | : | Reinforced RPTFE |
| Seal Material | : | Reinforced RPTFE |
| Material Standard | : | Ball: ASTM A276/ASTM A351, Belleville Washer: ASTM A686, Body: ASTM A108 Type 1018, Body End: ASTM A108 Type 1018, Gland Washer: ASTM A240 Type 304, Handle: ASTM A283, Handle Nut: ASTM A283, Stem: ASTM A276 |
| Material Specification | : | Ball: UNS CF8M |
| Industry Standards | : | MSS SP-110 |
| Other Physical Dimension | : | 2.22 IN Inlet Center To Top Of Handle, 4.13 IN Handle Length |
| Additional Specifications | : | Ball Material: Stainless Steel |
| Brand | : | NIBCO |
| Port | : | Conventional |
| Weight | : | 0.640 LB |
- Valve pressure rating 2000 PSI/138 BAR non-shock cold working pressure (1/4 - 1 IN)
- Valve pressure rating 1500 PSI 103 BAR non-shock cold working pressure (1-1/4 - 2 IN)
- Maximum temperature rating 400 DEG F
- Conventional port
- Blowout-proof stem design
- Stainless steel ball and stem
- Vented ball
- Standard lever handle
- Threaded end connections
- Conforms to MSS SP-110
