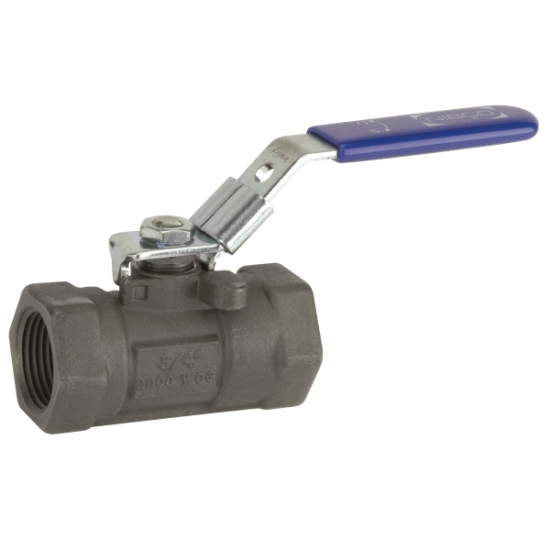

3/8 NIBCO T560-CSR-66 BALL VALVE

The NIBCO® carbon steel ball valve provides bubble-tight shut-off at 2000 PSI. The reinforced PTFE seat ring and stainless steel stem and ball exhibit high chemical-resistance properties and is recommended for process piping. The one-piece valve may be used on hot/cold water, HVAC, and is recommended for process piping, some chemical and utility service applications.

NIBCO NIBCO Ball Valve, Type: 1-Piece, Blowout-Roof Stem, Quarter-Turn, Ball Valve, Series/Model: T-560-CS-R-66-LL, 3/8 IN Nominal, Connection Type: FIPT, 300 PSI (CWP) Non-Shock, 400 DEG F, Carbon Steel Body, Locking Lever Handle Operator, Carbon Steel Handle, Stainless Steel Stem, Stainless Steel Trim, Reinforced RPTFE Seat, Material Standard: Ball: ASTM A276/ASTM A351, Body: ASTM A216 Grade WCB, Body Inserts: ASTM A216 Grade WCB, Handle: ASTM A283, Handle Nut: ASTM A283, Stem: ASTM A276, Packing Gland: ASTM A108 Type 1045, Material Specification: Ball: UNS CF8M, Industry Standards: MSS SP-110, Other Physical Dimension: 1.97 IN Inlet Center To Top Of Handle, 4.29 IN Handle Length, Additional Specifications: Ball Material: Stainless Steel, Flow Co-Efficient (Cv): 4, NIBCO, Reduced Port, 0.750 LB Weight

• Valve pressure rating 2000 PSI/138 BAR non-shock cold working pressure
• Maximum temperature rating 400 DEG F
• Reduced port
• Blowout-proof stem design
• Stainless steel ball and stem
• Vented ball
• Locking lever handle
• Threaded end connections
• Conforms to MSS SP-110

• Brochure/Catalog Name https://www.macombgroup.com//ASSETS/DOCUMENTS/ITEMS/EN/037S595YBV_Broc.pdf
• Installation Instruction Name https://www.macombgroup.com//ASSETS/DOCUMENTS/ITEMS/EN/VLVBACST560CSR661_Inst.pdf
• Specification Name https://www.macombgroup.com//ASSETS/DOCUMENTS/ITEMS/EN/VLVBACST560CSR661_Spec.pdf
