3/8 NIBCO 125 T113 SCRD GATE VALVE

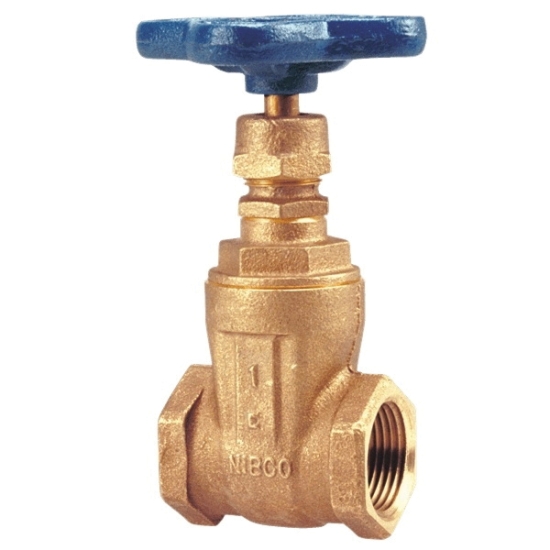

NIBCO T-113 NL0J005 Gate Valve, 3/8 IN, Threaded, Bronze
- Manufacturer: NIBCO
- Brand: NIBCO
- MGPN: VLV GT BR T113 3/8
- MPN: NL0J005
- UPC: 039923614131
- Min. Order Qty: 1
- Qty. Interval: 1
-
Availability:
- See All Availability
-
Price:
The NIBCO bronze gate valve features a screw-in bonnet for service where infrequent maintenance is required. The female threaded ends allow for ease of installation. Non-rising stem gate valves are used when shut-off is required and a space saving is necessary. The solid wedge, integral seats and bi-directional service make the gate valve a good choice for a broad range of services.
NIBCO T-113 Gate Valve, 3/8 IN Nominal, Threaded Connection, 125 PSI Saturated Steam, 200 PSI CWP, Pressure Class: Class 125, Bronze Body, Standard Handwheel Operator, Material Standard: ASTM B62, Industry Standards: MSS-SP80, 1.69 IN Width, 3.38 IN Height, Additional Specifications: Stem Type: Non-Rising, 0.71 LB Weight
| Item Name | : | Gate Valve |
| Series/Model | : | T-113 |
| Nominal Size | : | 3/8 IN |
| Connection Type | : | Threaded |
| Pressure Rating | : | 125 PSI Saturated Steam, 200 PSI CWP |
| Pressure Class | : | Class 125 |
| Body Material | : | Bronze |
| Operator Type | : | Standard Handwheel |
| Material Standard | : | ASTM B62 |
| Industry Standards | : | MSS-SP80 |
| Width | : | 1.69 IN |
| Height | : | 3.38 IN |
| Additional Specifications | : | Stem Type: Non-Rising |
| Weight | : | 0.71 LB |
- Non-rising stem
- Solid wedge
- Screw-in bonnet
- Dezincification-resistant
