1/2 NIBCO T580 CSR-66

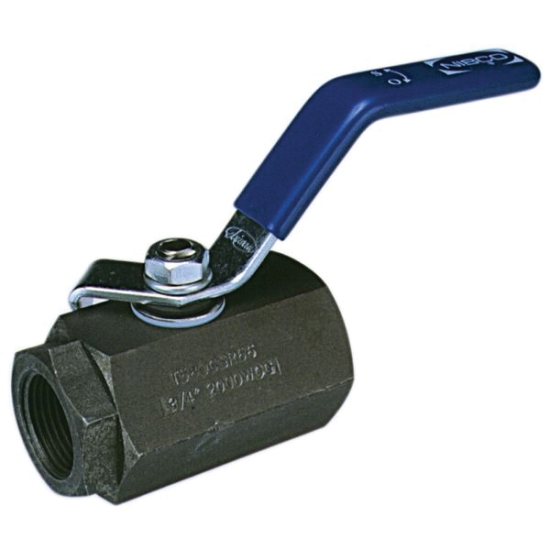

NIBCO T-580-CS-R-66 NL94GI6 2-Piece Ball Valve, 1/2 IN, FIPT, Carbon Steel
- Manufacturer: NIBCO
- Brand: NIBCO
- MGPN: VLV BA CS T580CSR66 1/2
- MPN: NL94GI6
- UPC: 039923675040
- Min. Order Qty: 1
- Qty. Interval: 1
-
Availability:
- See All Availability
-
Price:
The NIBCO carbon steel ball valve provides ease of operation with quarter-turn (90 DEG) open to close. Please refer to NIBCO technical data sheets, valve selection guides, chemical-resistance guide and catalog for engineering and installation information. Choose NIBCO ball valves for the most specified, versatile and economical valve option in commercial and industrial applications. NIBCO ball valves are backed by the exclusive NIBCO 5 year 125% limited warranty.
NIBCO 2-Piece Ball Valve, Type: Conventional Port, Item Name: 2-Piece Ball Valve, Series/Model: T-580-CS-R-66, 1/2 IN Nominal, FIPT Connection, Carbon Steel Body, Standard Lever Handle Operator, Carbon Steel Handle, Stainless Steel Stem, Stainless Steel Trim, RPTFE Packing, RPTFE Seat, RPTFE Seal, Material Standard: ASTM A108 Type 1018, 2.52 IN Width, 1.26 IN Height, Other Physical Dimension: 2.44 IN Center To End, Additional Specifications: Ball Material: Stainless Steel, Turns/Operation: Quarter-Turn, Stem Type: Blowout-Proof, 0.860 LB Weight
| Item Name | : | 2-Piece Ball Valve |
| Type | : | Conventional Port |
| Series/Model | : | T-580-CS-R-66 |
| Nominal Size | : | 1/2 IN |
| Connection Type | : | FIPT |
| Body Material | : | Carbon Steel |
| Operator Type | : | Standard Lever Handle |
| Handle Material | : | Carbon Steel |
| Stem Material | : | Stainless Steel |
| Trim Material | : | Stainless Steel |
| Packing Material | : | RPTFE |
| Seat Material | : | RPTFE |
| Seal Material | : | RPTFE |
| Material Standard | : | ASTM A108 Type 1018 |
| Width | : | 2.52 IN |
| Height | : | 1.26 IN |
| Other Physical Dimension | : | 2.44 IN Center To End |
| Additional Specifications | : | Ball Material: Stainless Steel, Turns/Operation: Quarter-Turn, Stem Type: Blowout-Proof |
| Weight | : | 0.860 LB |
