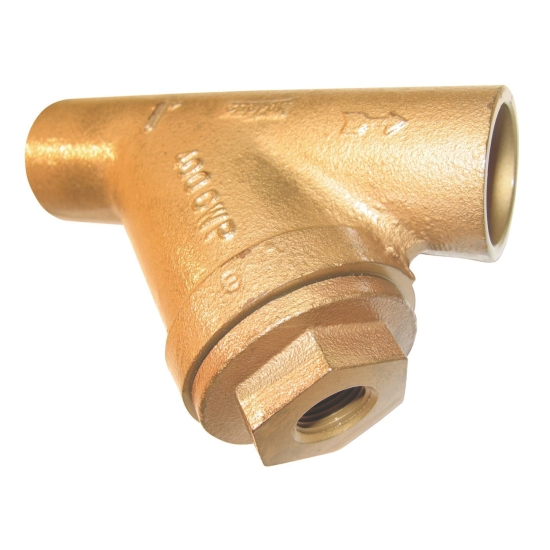

1 MUELLER LF358-N CC BRONZE WYE STRAINER

Used extensively to strain foreign matter from pipelines and provide economical protection for costly pumps, meters, valves, and other similar mechanical equipment in potable water systems.

Mueller Steam Specialty Y-Strainer, Y-Strainer, Series/Model: Model LF358-N, 1 IN Nominal, Connection Type: NPT X Solder, 20 Mesh Screen, 3/8 IN Blow-Off Port, Pressure Class: Class 125, 200 PSI At -20 To 150 DEG F, 150 PSI At 350 DEG F, Bronze Body, 304 Stainless Steel Screen, Metal Filled Graphite Gasket Seal, Material Standard: Body And Cap: ASTM C87800, Industry Standards: NFS-61, NFS-372, 4-3/4 IN Width, Other Physical Dimension: 2-7/16 IN Inlet Center To Cap End, Domestic/Import: Import, Additional Specifications: Blow-Off Port Type: NPT, 1.620 LB Weight

• Used to strain foreign matter from pipelines and provide economical protection for pumps and other mechanical equipment
• Special flared screen opening on upstream end provides unrestricted flow through the strainer
• Lead-free brass body and cap and 304 stainless steel screen

• Brochure/Catalog Name https://www.macombgroup.com//ASSETS/DOCUMENTS/ITEMS/EN/MUECK71AHH3H4_Broc.pdf
• Installation Instruction Name https://www.macombgroup.com//ASSETS/DOCUMENTS/ITEMS/EN/MUESTR111_Inst.pdf
• Specification Name https://www.macombgroup.com//ASSETS/DOCUMENTS/ITEMS/EN/MUESTRLF35112_Spec.pdf
