2 105 MAP CHECK VALVE

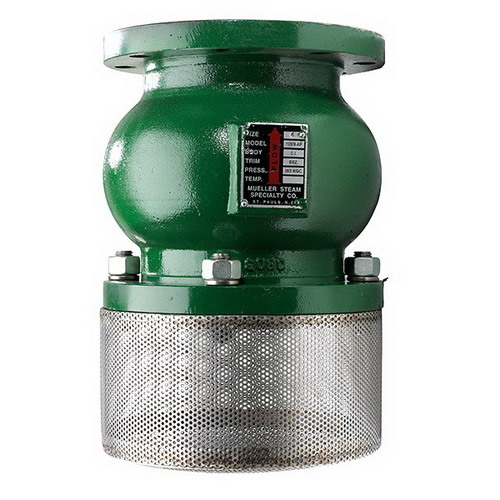

Mueller 105 MAP Class 125 Cast Iron Globe Style Silent Check Valve, 2 IN
- Manufacturer: Macomb Group Approved
-
Brand:
Macomb Group Approved™
MACOMB GROUP APPROVED™ identifies a product sold by The Macomb Group that complies with the form, fit, and function of the products responsive to your search request.
- MGPN: 200105MAPCV
- MPN: 200105MAPCV
- Min. Order Qty: 1
- Qty. Interval: 1
-
Availability:
- See All Availability
-
Price:
Globe Style Silent Check Valve, Series/Model: Model 105 MAP, Nominal Size: 2 IN, Pressure Rating: 200 PSI (WOG), Class 125 Pressure Class, Temperature Rating: 105 DEG F, Cast Iron Body Material, Trim Material: Bronze, Material Standard: Body: ASTM A126 Grade B, Trim: ASTM B62, 6-1/4 IN Width, 6 IN Height, Lead Free: No
| Item Name | : | Silent Check Valve |
| Type | : | Globe Style |
| Series/Model | : | Model 105 MAP |
| Nominal Size | : | 2 IN |
| Pressure Rating | : | 200 PSI (WOG) |
| Pressure Class | : | Class 125 |
| Temperature Rating | : | 105 DEG F |
| Body Material | : | Cast Iron |
| Trim Material | : | Bronze |
| Material Standard | : | Body: ASTM A126 Grade B, Trim: ASTM B62 |
| Width | : | 6-1/4 IN |
| Height | : | 6 IN |
| Lead Free | : | No |
- Spring closes the disc before flow reversal, preventing surge and water hammer
- Mating surfaces of the disc and seat are hand lapped for best possible sealing
- Disc is fully guided at top and bottom to insure alignment and sealing at any installation angle
- Disc begins to open at 0.5 PSI
- Bodies are designed to accommodate 110% flow of equivalent pipe size
- 302 Stainless steel spring
- Designed to fit ANSI flanges
