2 JAMESBURY 150 FLGD FULL

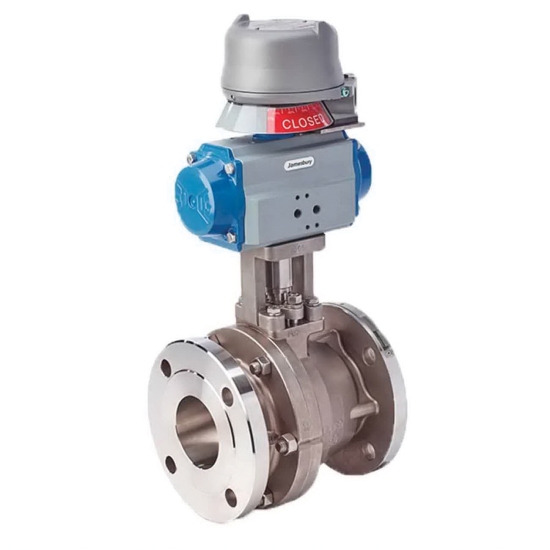

Jamesbury™ Series 9150 9150-31-3600XT 2 Ball Valve, 2 IN, Flanged, Class 150, 170 - 425 PSI
- Manufacturer: Valmet
- Brand: Jamesbury
- MGPN: J 9150-31-3600XT 2
- MPN: 9150-31-3600XT 2
- Min. Order Qty: 1
- Qty. Interval: 1
-
Availability:
- See All Availability
-
Price:
The Jamesbury polymer-seated flanged ball valves provide industry leading performance and reliability. Offered in a wide variety of materials to suit an extensive range of applications these valves are designed and manufactured with all our latest technology and expertise.
Jamesbury™ Jamesbury™ Ball Valve, Type: Fire-Tite, Full Bore, Full-Port, Non-Trunnion, Ball Valve, Series/Model: Series 9150, 2 IN Nominal, Connection Type: Flanged, 170 - 425 PSI, Pressure Class: Class 150, -20 To 500 DEG F, 2 IN Opening, Stainless Steel Body, Handle Operator, Stainless Steel Handle, Stainless Steel Stem, Stainless Steel Trim, Fluorocarbon Polymer Seat, TFM Seal, Material Standard: ASTM A351 Grade CF8M, Industry Standards: API 597, API 607, API 608, ASME B16.10, ASME B16.5, ASME B16.34, ASME B31.1, ASME B31.3, FCI 70-2, MSS SP-25, MSS SP-55, MSS SP-6, MSS SP-44, MSS SP-61, MSS SP-72, MSS SP-96, MSS SP-53-1995, MSS SP-93-1987, Other Physical Dimension: 7 IN Inlet To Outlet Length, 5.16 IN Top To Inlet Center, Additional Specifications: Face Type: Raised, Jamesbury™
| Item Name | : | Ball Valve |
| Type | : | Fire-Tite, Full Bore, Full-Port, Non-Trunnion |
| Series/Model | : | Series 9150 |
| Nominal Size | : | 2 IN |
| Connection Type | : | Flanged |
| Pressure Rating | : | 170 - 425 PSI |
| Pressure Class | : | Class 150 |
| Temperature Rating | : | -20 To 500 DEG F |
| Opening Size | : | 2 IN |
| Body Material | : | Stainless Steel |
| Operator Type | : | Handle |
| Handle Material | : | Stainless Steel |
| Stem Material | : | Stainless Steel |
| Trim Material | : | Stainless Steel |
| Seat Material | : | Fluorocarbon Polymer |
| Seal Material | : | TFM |
| Material Standard | : | ASTM A351 Grade CF8M |
| Industry Standards | : | API 597, API 607, API 608, ASME B16.10, ASME B16.5, ASME B16.34, ASME B31.1, ASME B31.3, FCI 70-2, MSS SP-25, MSS SP-55, MSS SP-6, MSS SP-44, MSS SP-61, MSS SP-72, MSS SP-96, MSS SP-53-1995, MSS SP-93-1987 |
| Other Physical Dimension | : | 7 IN Inlet To Outlet Length, 5.16 IN Top To Inlet Center |
| Additional Specifications | : | Face Type: Raised |
| Brand | : | Jamesbury™ |
- Robust engineering design
- Self-relieving seat technology
- Low emissions stem seal technology
- Very long service life
- Bi-directional in hazardous media service
- Low fugitive emissions
- Bubble-tight shut-off
- Automatable
Installation Instruction Name
