JAMESBURY THD CHLORINE LOC HDL

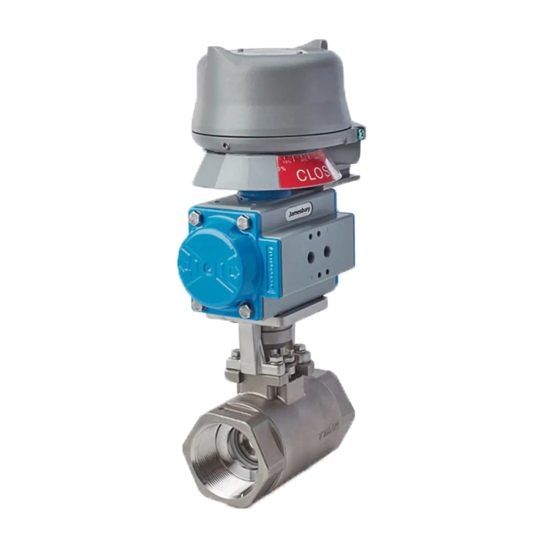

Jamesbury™ Eliminator™ 2000 MA0005930 Ball Valve, 3/4 IN, Threaded, Carbon Steel, 2000 PSI, Class 600
- Manufacturer: Valmet
- Brand: Jamesbury
- MGPN: J 9FBC-2271XT 3/4
- MPN: MA0005930
- Min. Order Qty: 1
- Qty. Interval: 1
-
Availability:
- See All Availability
-
Price:
The Jamesbury™ eliminator ball valve offers our best technology and performance in a two-piece threaded end valve. This ball valve's unique design offers fire test specifications, rugged actuator mounting and flexible lip seats for application versatility that surpasses other low cost ball valves. The eliminator ball valve is available in 1/4 to 2 IN (DN 8 to 50) sizes in two versions. The first is rated by the traditional approach for threaded end valves. This approach determines cold working pressure (CWP) based on paragraph UG101 of the ASME boiler and pressure vessel code.
Jamesbury™ Ball Valve, Type: Standard Port, Sub Brand: Eliminator™ 2000, Item Name: Ball Valve, 3/4 IN Nominal, Threaded Connection, 2000 PSI, Pressure Class: Class 600, 500 DEG F, 0.69 IN Opening, Carbon Steel Body, Carbon Steel Handle, Stainless Steel Stem, Stainless Steel Trim, PTFE Seat, TFM Seal, Material Standard: ASTM A216, 1.6 IN Width, Other Physical Dimension: 3 IN Inlet To Outlet Length, 2.52 IN Top To Inlet Center, Brand: Jamesbury™
| Sub Brand | : | Eliminator™ 2000 |
| Item Name | : | Ball Valve |
| Type | : | Standard Port |
| Nominal Size | : | 3/4 IN |
| Connection Type | : | Threaded |
| Pressure Rating | : | 2000 PSI |
| Pressure Class | : | Class 600 |
| Temperature Rating | : | 500 DEG F |
| Opening Size | : | 0.69 IN |
| Body Material | : | Carbon Steel |
| Handle Material | : | Carbon Steel |
| Stem Material | : | Stainless Steel |
| Trim Material | : | Stainless Steel |
| Seat Material | : | PTFE |
| Seal Material | : | TFM |
| Material Standard | : | ASTM A216 |
| Width | : | 1.6 IN |
| Other Physical Dimension | : | 3 IN Inlet To Outlet Length, 2.52 IN Top To Inlet Center |
| Brand | : | Jamesbury™ |
- Robust engineering design
- Self-relieving seat technology
- Patented stem seal technology
- ISO compliant bonnet
- High-quality
- Very long service life
- Bi-directional in hazardous media service
- Low fugitive emissions
- Bubble tight shut-off
- Automatable
