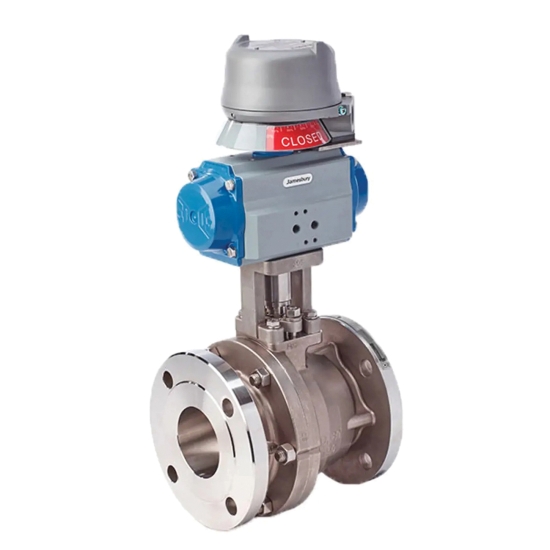

1/2 JAMESBURY 150 FLGD STD

The Jamesbury™ polymer seated flanged ball valves provide industry leading performance and reliability. Offered in a wide variety of materials to suit an extensive range of applications these valves are designed and manufactured with all our latest technology and expertise.

Jamesbury™ Ball Valve, Type: Reduced Bore, Standard Port, Brand Name: Jamesbury™, Item Name: Ball Valve, Series/Model: 7150, 1/2 IN Nominal, Flanged Connection, 170 - 450 PSI, Pressure Class: Class 150, -20 To 500 DEG F, 1/2 IN Opening, Carbon Steel Body, Carbon Steel Handle, Stainless Steel Stem, Stainless Steel Trim, Fluoropolymer Seat, TFM Seal, Material Standard: ASTM A216 Type WCB, Other Physical Dimension: 4-1/4 IN Inlet To Outlet Length, 3.38 IN Top To Inlet Center, Brand: Jamesbury™

• Robust engineering design
• Self-relieving seat technology
• Low emissions stem seal technology
• High-quality
• Very long service life
• Bi-directional in hazardous media service
• Low fugitive emissions
• Bubble tight shut-off
• Automatable

• Installation Instruction Name https://www.macombgroup.com//ASSETS/DOCUMENTS/ITEMS/EN/J7150313600XT12_Inst.pdf
• Specification Name https://www.macombgroup.com//ASSETS/DOCUMENTS/ITEMS/EN/J7150313600XT12_Spec.pdf
