1-1/4 INSULATED CPLG, PLASTISOL CTD

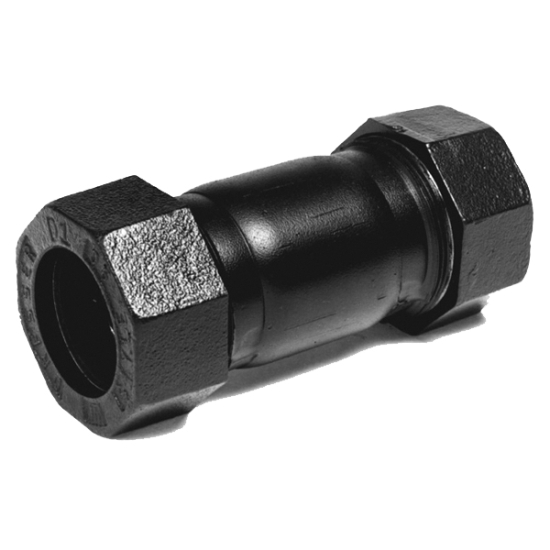

Dresser Style 90 0090-1679-212 Coupling, Insulating, Seal Only, 1-1/4 IN, Compression, 150 PSI
- Manufacturer: Dresser Piping Specialties
- Brand: Dresser
- MGPN: DRESSER 00901679212
- MPN: 0090-1679-212
- Min. Order Qty: 1
- Qty. Interval: 1
-
Availability:
- See All Availability
-
Price:
Dresser coupling and repair offers a complete line of seal-only boltless products for steel natural gas piping systems from 3/4 thru 2 IN OD. With minimal training, you can make quick, safe and reliable joints on steel to steel pipe connections - all by simply using a common pipe wrench! style 90 couplings and fittings come factory-coated with black thermoset epoxy, are 100% factory assembled and ready for fast installation with minimal field labor costs. In addition to standard compression end fittings, a line of MIPS, FIPS, street tees, ells and service tapping tees are also available.
Dresser Coupling, Type: Insulating, Seal Only, Coupling, Series/Model: Style 90, Pressure Class: 150 PSI, 1-1/4 IN Nominal, Connection Type: Compression, Finish/Color: Plastisol Coated, Method Of Manufacturer: Cast, 1.66 IN Outside Diameter, 6-7/8 IN Length, 150 PSI Maximum Pressure, Additional Specifications: Middle Ring Size: 5 IN, Suitable For Use With: Steel To Steel Seal Only Natural Gas Piping Connections
| Item Name | : | Coupling |
| Type | : | Insulating, Seal Only |
| Series/Model | : | Style 90 |
| Pressure Class | : | 150 PSI |
| Nominal Size | : | 1-1/4 IN |
| Connection Type | : | Compression |
| Finish/Color | : | Plastisol Coated |
| Method Of Manufacturer | : | Cast |
| Outside Diameter | : | 1.66 IN |
| Length | : | 6-7/8 IN |
| Maximum Pressure | : | 150 PSI |
| Additional Specifications | : | Middle Ring Size: 5 IN, Suitable For Use With: Steel To Steel Seal Only Natural Gas Piping Connections |
