4.800 SLV SPLIT W-1-1/4

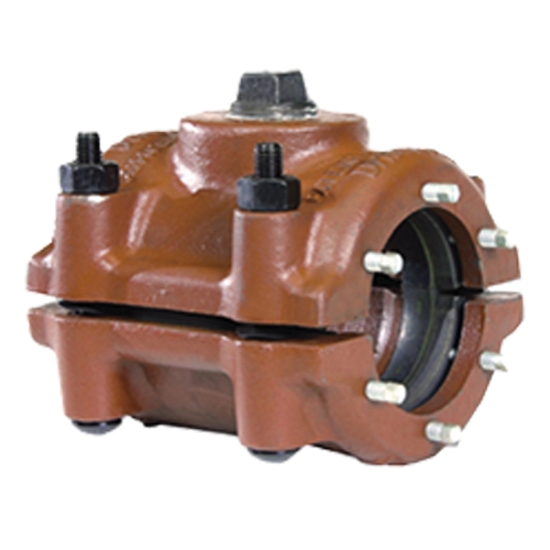

Dresser Style 80 0080-0015-011 Split Ready-Pack Sleeve With 1-1/4 IN Vent, 4 IN, Cast Iron
- Manufacturer: Dresser Piping Specialties
- Brand: Dresser
- MGPN: DRESSER 00800015011
- MPN: 0080-0015-011
- Min. Order Qty: 1
- Qty. Interval: 1
-
Availability:
- See All Availability
-
Price:
Dresser style 80 split ready-pack sleeves are used to enclose and permanently repair breaks, splits and holes in cast iron pipe. Style 80 sleeves can also be used as an efficient, low-cost tapping sleeve for branch service connections. The style 80 sleeves are recommended for all customary pressures where pipe wall thickness is in conformity with specifications for standard cast iron pipe.
Dresser Split Ready-Pack Sleeve With 1-1/4 IN Vent, Type: Standard Length, Split Ready-Pack Sleeve With 1-1/4 IN Vent, Series/Model: Style 80, 4 IN Nominal, Cast Iron, Material Standard: Vent Plug: ASTM A105, ASTM A126-42 Class A, Bolts And Nuts: AWWA C111/ANSI A21.11, 150 PSI Maximum Pressure, 4.74 - 4.99 IN Outside Diameter, 9-3/8 IN Length, 8-15/16 IN Width, Additional Specifications: Suitable For Use With: Cast Iron Pipe, 45.000 LB Weight
| Item Name | : | Split Ready-Pack Sleeve With 1-1/4 IN Vent |
| Type | : | Standard Length |
| Series/Model | : | Style 80 |
| Nominal Size | : | 4 IN |
| Material | : | Cast Iron |
| Material Standard | : | Vent Plug: ASTM A105, ASTM A126-42 Class A, Bolts And Nuts: AWWA C111/ANSI A21.11 |
| Maximum Pressure | : | 150 PSI |
| Outside Diameter | : | 4.74 - 4.99 IN |
| Length | : | 9-3/8 IN |
| Width | : | 8-15/16 IN |
| Additional Specifications | : | Suitable For Use With: Cast Iron Pipe |
| Weight | : | 45.000 LB |
