DRESSER #38 CPLG ARM 27 6 00389057013

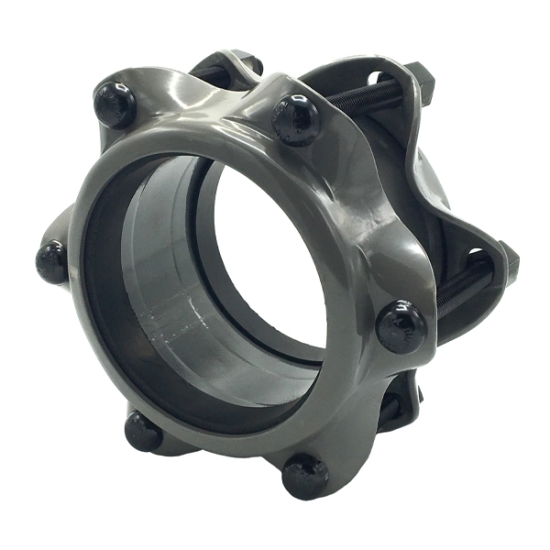

Dresser 00389057013 Coupling, 6 IN, Compression, Carbon Steel, Aluminum Clad, Fusion-Bonded Epoxy Coating, Style 38
- Manufacturer: Dresser Piping Specialties
- Brand: Dresser
- MGPN: DRESSER 38 ARM 6
- MPN: 00389057013
- Min. Order Qty: 1
- Qty. Interval: 1
-
Availability:
- See All Availability
-
Price:
Proven by years of service on all kinds of pipe, Dresser Style 38 couplings provide flexible, leak-proof connections that last the life of the pipe. No costly threading, beveling, exact pipe fitting or alignment is required. The resilient Dresser gaskets absorb vibration and pipe movement and permit curves to be laid with straight pipe lengths. Installation is safe and sure. There's no hazard to workmen or delays due to weather.
Dresser Coupling, Type: Style 38, Item Name: Coupling, 6 IN Nominal, Compression Connection, Carbon Steel, Finish/Color: Aluminum Clad, Fusion-Bonded Epoxy Coating, 6-5/8 IN Outside Diameter, 8 IN Length, 1029 PSI Maximum Pressure, 212 DEG F, Industry Standards: Prop 65 Warning, Additional Specifications: With Armored Grade 27 Gaskets, 1/4 IN Middle Ring Thickness, 5 IN Middle Ring Length, 25 LB Weight
| Item Name | : | Coupling |
| Type | : | Style 38 |
| Nominal Size | : | 6 IN |
| Connection Type | : | Compression |
| Material | : | Carbon Steel |
| Finish/Color | : | Aluminum Clad, Fusion-Bonded Epoxy Coating |
| Outside Diameter | : | 6-5/8 IN |
| Length | : | 8 IN |
| Maximum Pressure | : | 1029 PSI |
| Temperature Rating | : | 212 DEG F |
| Industry Standards | : | Prop 65 Warning |
| Additional Specifications | : | With Armored Grade 27 Gaskets, 1/4 IN Middle Ring Thickness, 5 IN Middle Ring Length |
| Weight | : | 25 LB |
