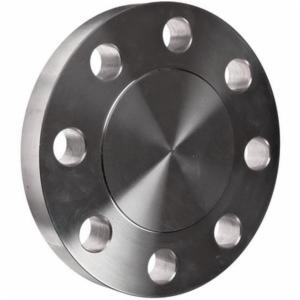

1-1/2 300 316 SS RF BLIND FLG - GLOBAL
Class 300 316 Stainless Steel Raised Face Blind Flange, 1-1/2 IN, 6.12 IN OD, Import
- Manufacturer: Macomb Group Approved
-
Brand:
Macomb Group Approved™
MACOMB GROUP APPROVED™ identifies a product sold by The Macomb Group that complies with the form, fit, and function of the products responsive to your search request.
- MGPN: 150306SBFI
- Min. Order Qty: 1
- Qty. Interval: 1
-
Availability:
- See All Availability
-
Price:
| Item Name | : | Blind Flange |
| Pressure Class | : | Class 300 |
| Nominal Size | : | 1-1/2 IN |
| Outside Diameter | : | 6.12 IN |
| Thickness | : | 0.81 IN |
| Face Type | : | Raised |
| Bolt Circle Diameter | : | 4-1/2 IN |
| Number Of Bolts | : | 4 |
| Bolt Hole Diameter | : | 0.88 IN |
| Material | : | 316 Stainless Steel |
| Material Standard | : | ASTM A182/ASME SA182 |
| Method Of Manufacturer | : | Forged |
| Industry Standards | : | ANSI B16.5 |
| Other Physical Dimension | : | 2.88 IN Diameter Of Raised Face |
| Domestic/Import | : | Import |
