1 BONOMI 766001 FLGD CS FP SPLIT BODY

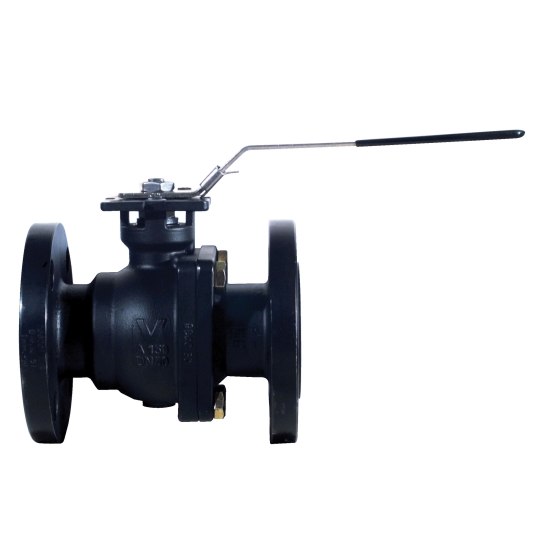

Bonomi Class 150 Carbon Steel Locking Handle Full-Port Split-Body Ball Valve, 1 IN, Flanged
- Manufacturer: Bonomi North America Inc
- Brand: Bonomi
- MGPN: 100766001BV
- Min. Order Qty: 1
- Qty. Interval: 1
-
Availability:
- See All Availability
-
Price:
Carbon steel, ANSI class 150 flanged ball valve, full port, with locking handle.
| Item Name | : | Ball Valve |
| Type | : | Full-Port, Split-Body |
| Nominal Size | : | 1 IN |
| Connection Type | : | Flanged |
| Pressure Class | : | Class 150 |
| Temperature Rating | : | 0 - 366 DEG F |
| Body Material | : | Carbon Steel |
| Operator Type | : | Locking Handle |
| Handle Material | : | Stainless Steel |
| Stem Material | : | 304 Stainless Steel |
| Trim Material | : | 316 Stainless Steel Ball |
| Packing Material | : | PTFE |
| Seat Material | : | PTFE |
| Seal Material | : | Graphoil/PTFE |
| Material Standard | : | Body: ASTM A216 Grade WCB, Ball: ASTM A351 Grade CF8M/ASTM A216, Stem: ASTM A276 |
| Industry Standards | : | ANSI B16.5, B16.10, B16.34 Certified, FIRESAFE Certified to API 607 6th Edition, ISO 5211 |
| Width | : | 5 IN |
| Lead Free | : | No |
| Other Physical Dimension | : | 3.66 IN Inlet Center To Top Of Handle, 3.66 IN Handle Length |
| Additional Specifications | : | Flow Co-Efficient (Cv): 50 |
| Brand | : | Bonomi |
| Firesafe | : | Yes |
- Direct mount ISO 5211/square stem
- Temperature range -4 to 366 DEG F
- Blow-out proof stem, adjustable stem packing
- PTFE seats, and FKM Viton® o-rings
- Fire safe certified to API 607
- 100% tested
- Anti-static device
- Standard locking handle
