1/2 150 316SS THRD FLG AML

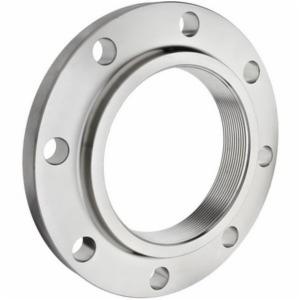

Class 150 316 Stainless Steel Threaded Flange, 1/2 IN, 3-1/2 IN OD, FNPT, AML Approved
- Manufacturer: Macomb Group Approved
-
Brand:
Macomb Group Approved™
MACOMB GROUP APPROVED™ identifies a product sold by The Macomb Group that complies with the form, fit, and function of the products responsive to your search request.
- MGPN: 050156STFAML
- Min. Order Qty: 1
- Qty. Interval: 1
-
Availability:
- See All Availability
-
Price:
| Item Name | : | Threaded Flange |
| Pressure Class | : | Class 150 |
| Nominal Size | : | 1/2 IN |
| Outside Diameter | : | 3-1/2 IN |
| Connection Type | : | FNPT |
| Wall Thickness | : | 7/16 IN |
| Thickness | : | 7/16 IN |
| Bolt Circle Diameter | : | 2-3/8 IN |
| Number Of Bolts | : | 4 |
| Bolt Hole Diameter | : | 5/8 IN |
| Length Through Hub | : | 5/8 IN |
| Material | : | 316 Stainless Steel |
| Material Standard | : | ASTM A182 F304 |
| Industry Standards | : | AML Approved |
