WESTLOCK LIMIT SWITCH

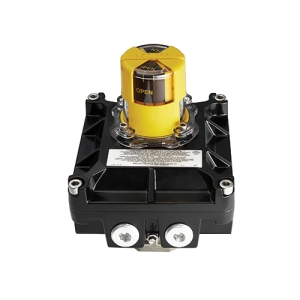

WESTLOCK CONTROLS AccuTrak™ 2007NBY Powder Coating/Black Closed And Yellow Open Beacon Aluminum Explosionproof Rotary Position Monitor For Manual and Automated Rotary Valves
- Manufacturer: Crane Co
- Brand: Westlock Controls
- MGPN: 2007NBY
- MPN: 2007NBY
- Min. Order Qty: 1
- Qty. Interval: 1
-
Availability:
- See All Availability
-
Price:
| Sub Brand | : | AccuTrak™ |
| Item Name | : | Position Monitor |
| Type | : | Explosionproof, Rotary |
| Material | : | Aluminum |
| Finish/Color | : | Powder Coating/Black Closed And Yellow Open Beacon |
| Height | : | 6.43 IN |
| Industry Standards | : | Class I, Div 1, Groups C and D T, Class II, Div 1, Groups E, F and G T, ITS12ATEX17472X, IECEx ETL17.0008X, NCC 16.0122X, Intertek ATM 103627517CRT-001, II 2 G Ex db IIB+H2 T* Gb Ta -DEG C to + DEG C, II 2 D Ex td IIIC T Db Ta -DEG C to + DEG C, NEMA 4, 4X, IP66/67 |
| Additional Specifications | : | Includes: V3 Mechanical, SPDT Limit Switch |
| Brand | : | WESTLOCK CONTROLS |
| Modulating | : | No |
- Touch set cams are hand adjustable, spring loaded and self-locking providing quick calibration of position switches and sensors
- Terminal strips are pre-wired and numbered with generous working space for ease of use
- Additional conduit for easy field wiring and mounting accessories as standard
- Standardized mounting pattern for easy adaptation to common bracketry
- Analog position transmitter option
- Eliminator option for easy integration of external solenoid valve
- Aluminum enclosures with ultra-low copper content (0.2% maximum) ensure robust performance in corrosive environments
- Rugged stainless steel enclosures
- Fully integrated and encapsulated rotary valve position monitors that are certified for use in explosive atmospheres
Instruction/Installation Manual
