WATTS T1450F REGULATOR

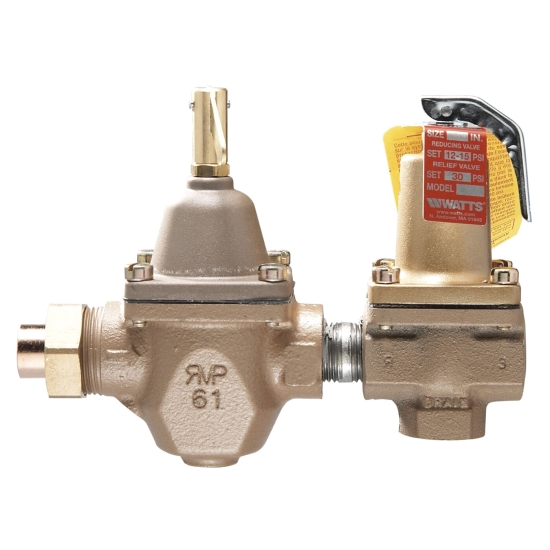

Watts Series 1450F/Model T1450F-STD 0388805 Regulator And Relief Valve, 1/2 IN, Union Joint NPT X NPT, 100 PSI
- Manufacturer: Watts
- Brand: Watts
- MGPN: WATTS T1450F
- MPN: 0388805
- UPC: 098268025569
- Min. Order Qty: 1
- Qty. Interval: 1
-
Availability:
- See All Availability
-
Price:
This 1/2 IN dual control regulator and relief valve is for use in commercial and residential hydronic heating systems to fill the boiler and piping system with water, and to maintain water pressure in the system at all times. It also provides make-up water to the system in the event of system leaks. It consists of an iron and bronze body construction with NPT threaded inlet and outlet connections, an attached iron body, a tight seating check valve, diaphragm relief valve, purge lever for manual purging, and a stainless steel strainer. It has high capacity performance and a simplified servicing design. It is suitable for use in the boiler feed lines of hydronic heating systems. The maximum pressure is 100 PSI (6.9 BAR).
Watts Regulator And Relief Valve, Type: Dual Control, Iron Body, Connection Type: Union Joint NPT X NPT, 5-5/16 IN Height, Regulator And Relief Valve, Lead Free: No, 1/2 IN Nominal, 100 PSI, Series/Model: Series 1450F/Model T1450F-STD, 33 - 212 DEG F, 3.300 LB Weight, 6-1/2 IN Width
| Body Material | : | Iron |
| Connection Type | : | Union Joint NPT X NPT |
| Height | : | 5-5/16 IN |
| Item Name | : | Regulator And Relief Valve |
| Lead Free | : | No |
| Nominal Size | : | 1/2 IN |
| Pressure Rating | : | 100 PSI |
| Series/Model | : | Series 1450F/Model T1450F-STD |
| Temperature Rating | : | 33 - 212 DEG F |
| Type | : | Dual Control |
| Weight | : | 3.300 LB |
| Width | : | 6-1/2 IN |
- Tight seating check valve
- Purge lever
- High capacity
- Stainless steel strainer
