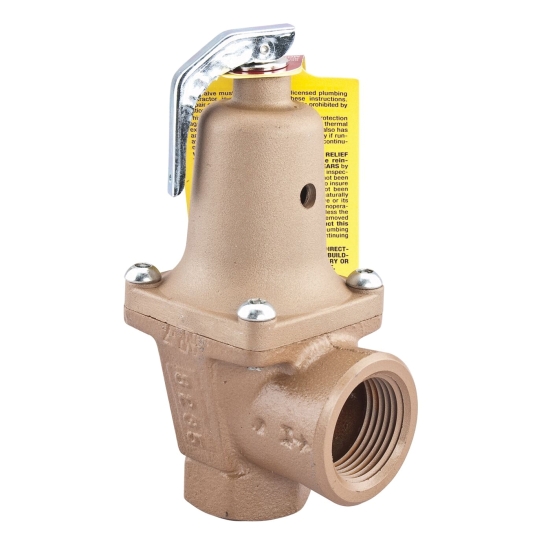

1-1/4 WATTS 740 40 RELIEF VALVE

This 1-1/4 IN boiler pressure relief valve is used in hot water space heating boiler applications to protect against excessive pressure on all types of hot water space heating boiler equipment. It consists of an iron body construction with expanded outlet drain connections for hot water space heating boilers, non-metallic disc-to-metal seating, stainless steel spring, and test lever. It offers large discharge capacity, resists corrosive water conditions, resists sticking and freezing, and prevents water and sediment from being trapped in the seat. It is designed for emergency safety relief, not as an operating control. The pressure relief is set at 40 PSI (275.8 KPA) with corresponding high pressure ratings up to 2590000 BTU/HR.

Watts Boiler Water Pressure Relief Valve, Additional Specifications: Steam Pressure Discharge Capacity: 2590000 BTU/HR, Iron Body, Connection Type: FNPT, Domestic/Import: Domestic, 8-3/4 IN Height, Industry Standards: NBBI Certified To ASME BPVC Section XIII As An HV, Boiler Water Pressure Relief Valve, Lead Free: No, 1-1/4 X 1-1/2 IN Nominal, Other Physical Dimension: 4-5/8 IN Length, 40 PSI, Series/Model: Series 740/Model 740-040, 250 DEG F, 6.130 LB Weight

• Iron body construction
• Soft seated
• Spring loaded
• Automatic reseating

• Specification Name https://www.macombgroup.com//ASSETS/DOCUMENTS/ITEMS/EN/075740RV75_Spec.pdf
