1/2 LFN36 WATTS NO LEAD N36 VACUUM

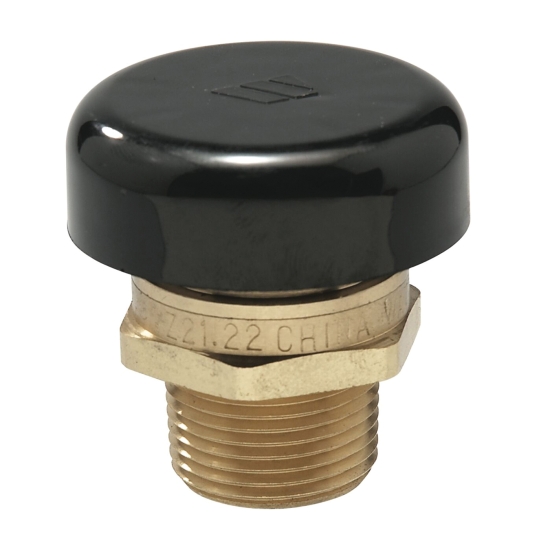

Watts Series LFN36/Model LFN36-M1 0556030 Vacuum Relief Valve, 1/2 IN, MNPT, 200 PSI, Brass Body
- Manufacturer: Watts
- Brand: Watts
- MGPN: 050LFN36RV
- MPN: 0556030
- UPC: 098268450408
- Min. Order Qty: 1
- Qty. Interval: 1
-
Availability:
- See All Availability
-
Price:
This 1/2 IN lead-free vacuum relief valve is suitable for low-pressure steam and water service, and is ideal for use in domestic water heaters and supply tanks. This valve automatically allows air to enter into the piping system to prevent vacuum conditions that could siphon water from the system and damage water equipment. It consists of a lead-free brass body construction with NPT male inlet connection, and a protective cap. Maximum working pressure is 200 PSI.
Watts Vacuum Relief Valve, Brass Body, Connection Type: MNPT, Domestic/Import: Domestic, 15 CFM Flow Rate, 2 IN Height, Industry Standards: C/US CSA Certified, ANSI Z21.22, Vacuum Relief Valve, Lead Free: Yes, 1/2 IN Nominal, 200 PSI, Series/Model: Series LFN36/Model LFN36-M1, 250 DEG F, 4.000 OZ Weight, 2 IN Width
| Body Material | : | Brass |
| Connection Type | : | MNPT |
| Domestic/Import | : | Domestic |
| Flow Rate | : | 15 CFM |
| Height | : | 2 IN |
| Industry Standards | : | C/US CSA Certified, ANSI Z21.22 |
| Item Name | : | Vacuum Relief Valve |
| Lead Free | : | Yes |
| Nominal Size | : | 1/2 IN |
| Pressure Rating | : | 200 PSI |
| Series/Model | : | Series LFN36/Model LFN36-M1 |
| Temperature Rating | : | 250 DEG F |
| Weight | : | 4.000 OZ |
| Width | : | 2 IN |
- Lead-free construction
- Low profile
- Maximum temperature 250 DEG
- Maximum steam pressure 15 PSI
