3x2-1/2 BCI 90 ELL

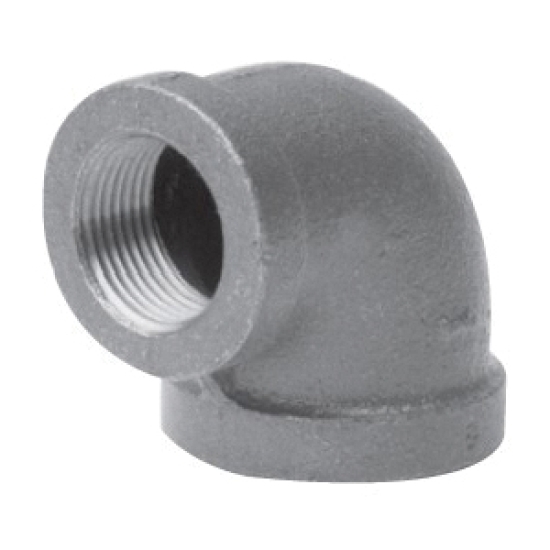

WARD MFG 3X2D.BCL 90 DEG Reducing Elbow, 3 X 2-1/2 IN, Class 125, Cast Iron, Black
- Manufacturer: Ward Manufacturing
- Brand: WARD MFG
- MGPN: ELL BC 90 3X2-1/2
- MPN: 3X2D.BCL
- UPC: 66246709580
- Min. Order Qty: 1
- Qty. Interval: 1
-
Availability:
- See All Availability
-
Price:
Ward class 125 cast iron pipe fittings are made in accordance with ASME B16.4 with threads that meet the requirements of ASME B1.20.1. All Ward black class 125 cast iron pipe fittings with outlets ranging from 1/2 IN through 4 IN are air tested.
WARD MFG 90 DEG Reducing Elbow, 90 DEG Reducing Elbow, Pressure Class: Class 125, 3 X 2-1/2 IN Nominal, Cast Iron, Material Standard: ASTM A126, ASTM A153, Finish/Color: Black, 4.62 X 3.86 IN Outside Diameter, 175 PSI Maximum Pressure, -20 To 150 DEG F, Industry Standards: ASME B16.4, ASME B1.20.1, ASME B16.3, Other Physical Dimension: 2.83 X 2.99 IN Center To End, 0.98 X 0.92 IN Thread Length, 1.63 X 1.85 IN Take Out, 5.736 LB Weight
| Item Name | : | 90 DEG Reducing Elbow |
| Pressure Class | : | Class 125 |
| Nominal Size | : | 3 X 2-1/2 IN |
| Material | : | Cast Iron |
| Material Standard | : | ASTM A126, ASTM A153 |
| Finish/Color | : | Black |
| Outside Diameter | : | 4.62 X 3.86 IN |
| Maximum Pressure | : | 175 PSI |
| Temperature Rating | : | -20 To 150 DEG F |
| Industry Standards | : | ASME B16.4, ASME B1.20.1, ASME B16.3 |
| Other Physical Dimension | : | 2.83 X 2.99 IN Center To End, 0.98 X 0.92 IN Thread Length, 1.63 X 1.85 IN Take Out |
| Weight | : | 5.736 LB |
- Wide range of products for sprinkler systems, drainage systems other installations
- Accurate form, length and straightness on threads for easy engagement
- Chamfered openings for fast, easy engagement and assembly
- Precision machining
- Rust-resistant coating
