2-1/2 COP VLV BA BR LF PXP 78300

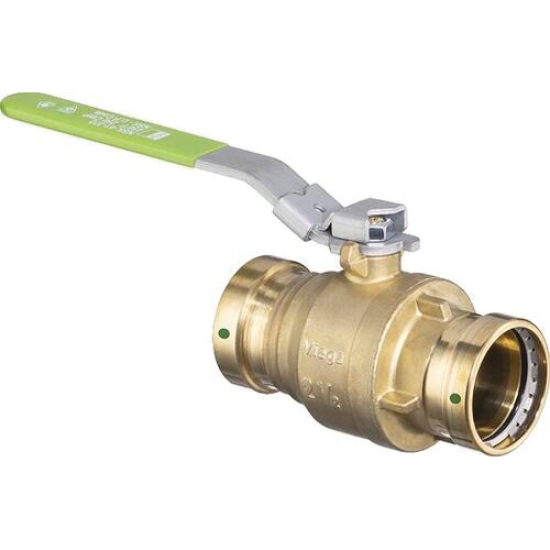

Viega ProPress® Model 2971.1XL 78300 Ball Valve, 2-1/2 IN, Press, 300 PSI Operating, 300 PSI (CWP), Brass Body
- Manufacturer: Viega LLC
- Brand: Viega
- MGPN: VIEGA PP VLV BA BR LF PXP 2-1/2
- MPN: 78300
- UPC: 691514783000
- Min. Order Qty: 1
- Qty. Interval: 1
-
Availability:
- See All Availability
-
Price:
The two-piece zero lead brass ball valve is equipped with a full port, plated ball. The ball valve features EPDM sealing elements, EPDM stem seals, and Viega's smart connect technology for easy identification of unpressed connections during testing.
Viega ProPress® Ball Valve, Type: 2-Piece, Full-Port, ProPress®, Ball Valve, Series/Model: Model 2971.1XL, 2-1/2 IN Nominal, Connection Type: Press, 300 PSI Operating, 300 PSI (CWP), 0 - 250 DEG F, Brass Body, Lockable Handle Operator, Steel Handle, Brass Stem, PTFE Seat, EPDM Seal, Material Specification: UNS C27453, UNS C27450, Finish/Color: Chromium Plated Ball, Geomet Plated Handle, Industry Standards: IAPMO/ANSI Z1157, NSF-61, NSF-372, NSF Certified, 15.13 IN Width, Lead Free: Yes, Other Physical Dimension: 11.22 IN Handle Length, 4.02 IN Inlet Center To Top Of Handle, Additional Specifications: Ball Material: Brass, Handle Cover Material: Polyvinyl, 8.706 LB Weight
| Sub Brand | : | ProPress® |
| Item Name | : | Ball Valve |
| Type | : | 2-Piece, Full-Port |
| Series/Model | : | Model 2971.1XL |
| Nominal Size | : | 2-1/2 IN |
| Connection Type | : | Press |
| Pressure Rating | : | 300 PSI Operating, 300 PSI (CWP) |
| Temperature Rating | : | 0 - 250 DEG F |
| Body Material | : | Brass |
| Operator Type | : | Lockable Handle |
| Handle Material | : | Steel |
| Stem Material | : | Brass |
| Seat Material | : | PTFE |
| Seal Material | : | EPDM |
| Material Specification | : | UNS C27453, UNS C27450 |
| Finish/Color | : | Chromium Plated Ball, Geomet Plated Handle |
| Industry Standards | : | IAPMO/ANSI Z1157, NSF-61, NSF-372, NSF Certified |
| Width | : | 15.13 IN |
| Lead Free | : | Yes |
| Other Physical Dimension | : | 11.22 IN Handle Length, 4.02 IN Inlet Center To Top Of Handle |
| Additional Specifications | : | Ball Material: Brass, Handle Cover Material: Polyvinyl |
| Weight | : | 8.706 LB |
- Smart connect technology
- Zero lead
- For potable water installations
- Press connection
- Full port
- EPDM sealing elements, chrome-plated brass ball, lockable metal handle
