3/4 COP VLV BA BR LF PXHC 79876

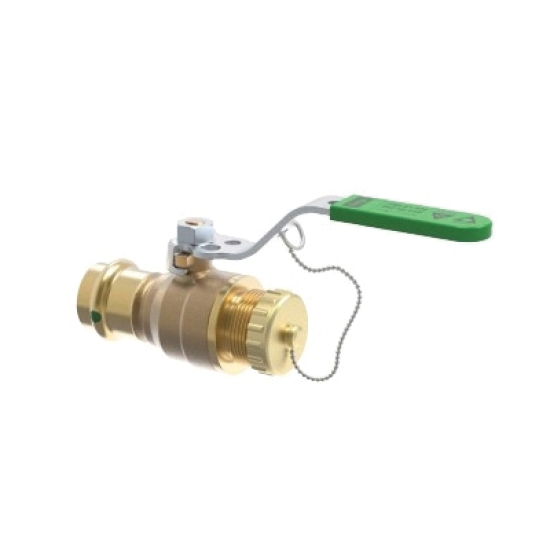

Viega ProPress® Model 2971.6ZL 79876 Ball Valve, 3/4 IN, Press X Garden Hose, 300 PSI Operating, 300 PSI (CWP)
- Manufacturer: Viega LLC
- Brand: Viega
- MGPN: VIEGA PP VLV BA BR LF PXHC 3/4
- MPN: 79876
- UPC: 691514798769
- Min. Order Qty: 1
- Qty. Interval: 1
-
Availability:
- See All Availability
-
Price:
The two-piece zero lead bronze ball valve is equipped with a full port, zero lead bronze body. The ball valve features EPDM sealing elements, EPDM stem seals and Viega's smart connect technology for easy identification of unpressed connections during pressure testing.
Viega ProPress® Ball Valve, Type: 2-Piece, Full-Port, ProPress®, Ball Valve, Series/Model: Model 2971.6ZL, 3/4 IN Nominal, Connection Type: Press X Garden Hose, 300 PSI Operating, 300 PSI (CWP), 0 - 250 DEG F, Bronze Body, Lockable Handle Operator, Steel Handle, Brass Stem, PTFE Seat, EPDM Seal, Material Specification: UNS C27453, UNS C27450, Finish/Color: Chromium Plated Ball, Geomet Plated Handle, Industry Standards: IAPMO/ANSI Z1157, NSF-61, NSF-372, NSF Certified, Lead Free: Yes, Other Physical Dimension: 4.57 IN Handle Length, 2.1 IN Inlet Center To Top Of Handle, 1.75 X 1.56 IN Center To End, Additional Specifications: Ball Material: Brass, Handle Cover Material: Polyvinyl, 0.719 LB Weight
| Sub Brand | : | ProPress® |
| Item Name | : | Ball Valve |
| Type | : | 2-Piece, Full-Port |
| Series/Model | : | Model 2971.6ZL |
| Nominal Size | : | 3/4 IN |
| Connection Type | : | Press X Garden Hose |
| Pressure Rating | : | 300 PSI Operating, 300 PSI (CWP) |
| Temperature Rating | : | 0 - 250 DEG F |
| Body Material | : | Bronze |
| Operator Type | : | Lockable Handle |
| Handle Material | : | Steel |
| Stem Material | : | Brass |
| Seat Material | : | PTFE |
| Seal Material | : | EPDM |
| Material Specification | : | UNS C27453, UNS C27450 |
| Finish/Color | : | Chromium Plated Ball, Geomet Plated Handle |
| Industry Standards | : | IAPMO/ANSI Z1157, NSF-61, NSF-372, NSF Certified |
| Lead Free | : | Yes |
| Other Physical Dimension | : | 4.57 IN Handle Length, 2.1 IN Inlet Center To Top Of Handle, 1.75 X 1.56 IN Center To End |
| Additional Specifications | : | Ball Material: Brass, Handle Cover Material: Polyvinyl |
| Weight | : | 0.719 LB |
- Smart connect technology
- Zero lead
- For potable water installations
- Press connection, hose connection
- Full port
- Lockable metal handle, stainless steel ball, EPDM sealing element
