1/2 COP VLV BA BR LF PXF 79970

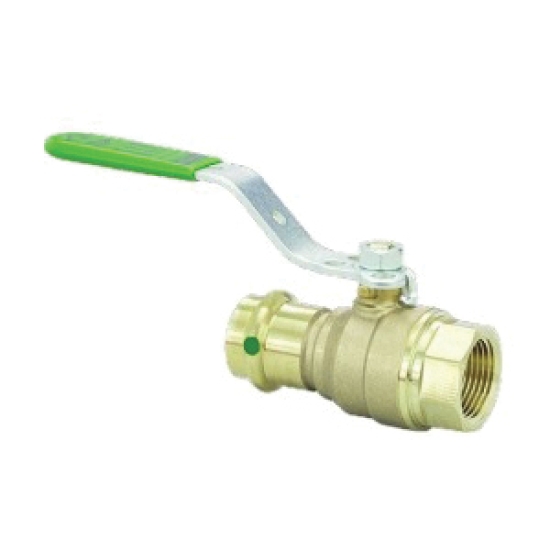

Viega ProPress® Model 2971.4ZL 79970 Ball Valve, 1/2 IN, Press X FPT, 300 PSI Operating, 300 PSI (CWP), Bronze Body
- Manufacturer: Viega LLC
- Brand: Viega
- MGPN: VIEGA PP VLV BA BR LF PXF 1/2
- MPN: 79970
- UPC: 691514799704
- Min. Order Qty: 1
- Qty. Interval: 1
-
Availability:
- See All Availability
-
Price:
The two-piece zero lead bronze ball valve is equipped with a full port, zero lead bronze body. The ball valve features EPDM sealing elements, EPDM stem seals and Viega's smart connect technology for easy identification of unpressed connections during pressure testing.
Viega ProPress® Ball Valve, Type: 2-Piece, Full-Port, ProPress®, Ball Valve, Series/Model: Model 2971.4ZL, 1/2 IN Nominal, Connection Type: Press X FPT, 300 PSI Operating, 300 PSI (CWP), 0 - 250 DEG F, Bronze Body, Lockable Handle Operator, Steel Handle, Brass Stem, Reinforced PTFE Seat, EPDM Seal, Material Specification: UNS C87700, UNS C69300, Finish/Color: Zinc Plated Handle, Industry Standards: IAPMO/ANSI Z1157, NSF-61, NSF-372, NSF Certified, Lead Free: Yes, Other Physical Dimension: 4.57 IN Handle Length, 1.97 IN Inlet Center To Top Of Handle, 1.57 X 1.2 IN Center To End, Additional Specifications: Ball Material: 316 Stainless Steel, Handle Cover Material: Polyvinyl, 0.463 LB Weight
| Sub Brand | : | ProPress® |
| Item Name | : | Ball Valve |
| Type | : | 2-Piece, Full-Port |
| Series/Model | : | Model 2971.4ZL |
| Nominal Size | : | 1/2 IN |
| Connection Type | : | Press X FPT |
| Pressure Rating | : | 300 PSI Operating, 300 PSI (CWP) |
| Temperature Rating | : | 0 - 250 DEG F |
| Body Material | : | Bronze |
| Operator Type | : | Lockable Handle |
| Handle Material | : | Steel |
| Stem Material | : | Brass |
| Seat Material | : | Reinforced PTFE |
| Seal Material | : | EPDM |
| Material Specification | : | UNS C87700, UNS C69300 |
| Finish/Color | : | Zinc Plated Handle |
| Industry Standards | : | IAPMO/ANSI Z1157, NSF-61, NSF-372, NSF Certified |
| Lead Free | : | Yes |
| Other Physical Dimension | : | 4.57 IN Handle Length, 1.97 IN Inlet Center To Top Of Handle, 1.57 X 1.2 IN Center To End |
| Additional Specifications | : | Ball Material: 316 Stainless Steel, Handle Cover Material: Polyvinyl |
| Weight | : | 0.463 LB |
- Smart connect technology
- Zero lead
- For potable water installations
- Press connection, female pipe thread
- Full port
- Lockable metal handle, stainless steel ball, EPDM sealing element
