3/4 CS TEE PXPXFPT W/FKM 84550

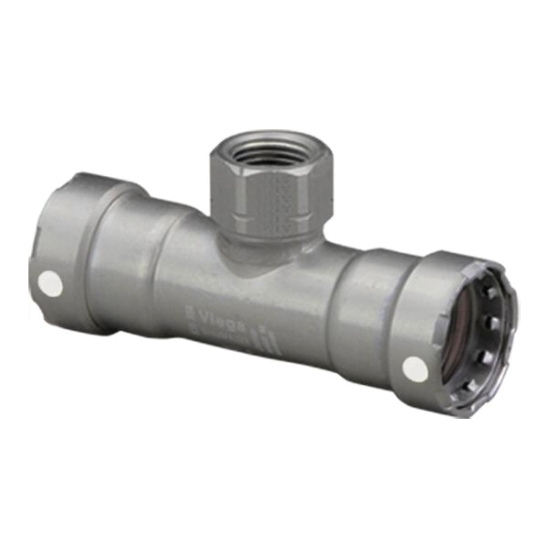

Viega MegaPress® Model 5917.2 84550 Straight Tee, 3/4 IN, Press X Press X FPT, Carbon Steel, Zinc Nickel Coated
- Manufacturer: Viega LLC
- Brand: Viega
- MGPN: MEGAPRESS FKM CS TEE PXPXFPT 3/4
- MPN: 84550
- UPC: 691514845500
- Min. Order Qty: 1
- Qty. Interval: 1
-
Availability:
- See All Availability
-
Price:
Viega MegaPress FKM is the first and only clean, secure and efficient choice for joining 1/2 - 4 IN carbon steel pipe with an FKM sealing element. Meticulously engineered, it is suitable for renovations, repairs or installation on new carbon steel pipe systems. Viega MegaPress FKM can even be installed on non-combustible/flammable lines that are not completely shut down, eliminating the need to fully drain a system, and shortening repair and installation time. It is approved for use in hydronic heating, compressed air, fire protection, cooling water, marine applications and many more. Not approved for use with potable water.
Viega MegaPress® Straight Tee, MegaPress®, Straight Tee, Series/Model: Model 5917.2, 3/4 IN Nominal, Connection Type: Press X Press X FPT, Carbon Steel, Material Standard: ASTM A420, Finish/Color: Zinc Nickel Coated, 4.52 IN Length, 200 PSI Maximum Pressure, 14 - 284 DEG F, Industry Standards: ASTM F3226, ASME B1.20.1, IAPMO/ANSI/CAN Z1117, Other Physical Dimension: 2.26 X 2.26 X 1.58 IN Center To End, Additional Specifications: Suitable For Use With: SCH 5 To SCH 40 Carbon Steel Pipes, Includes: FKM Sealing Element, Grip Ring, Separator Ring, 0.655 LB Weight
| Sub Brand | : | MegaPress® |
| Item Name | : | Straight Tee |
| Series/Model | : | Model 5917.2 |
| Nominal Size | : | 3/4 IN |
| Connection Type | : | Press X Press X FPT |
| Material | : | Carbon Steel |
| Material Standard | : | ASTM A420 |
| Finish/Color | : | Zinc Nickel Coated |
| Length | : | 4.52 IN |
| Maximum Pressure | : | 200 PSI |
| Temperature Rating | : | 14 - 284 DEG F |
| Industry Standards | : | ASTM F3226, ASME B1.20.1, IAPMO/ANSI/CAN Z1117 |
| Other Physical Dimension | : | 2.26 X 2.26 X 1.58 IN Center To End |
| Additional Specifications | : | Suitable For Use With: SCH 5 To SCH 40 Carbon Steel Pipes, Includes: FKM Sealing Element, Grip Ring, Separator Ring |
| Weight | : | 0.655 LB |
- Smart connect technology
- For use with SCH 5 to SCH 40 carbon steel pipe
- Carbon steel, zinc-nickel coating
- Press connection, female pipe thread
- FKM sealing elements, grip rings, separator rings
