2-1/2 304SS PROPRESS XL P X FLG ADAPTER

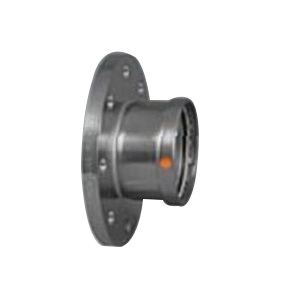

Viega ProPress® 0159XL304 Stainless Steel Flange Adapter, 2-1/2 IN, 7.087 IN OD Flange, Press X Flanged
- Manufacturer: Viega LLC
- Brand: Viega
- MGPN: 2504SPPPFAXL
- MPN: 86065
- Min. Order Qty: 1
- Qty. Interval: 1
-
Availability:
- See All Availability
-
Price:
| Sub Brand | : | ProPress® |
| Item Name | : | Flange Adapter |
| Series/Model | : | Model 0159XL |
| Nominal Size | : | 2-1/2 IN |
| Flange Outside Diameter | : | 7.087 IN |
| Connection Type | : | Press X Flanged |
| Flange Thickness | : | 0.894 IN |
| Number Of Bolts | : | 4 |
| Bolt Hole Diameter | : | 0.748 IN |
| Length | : | 3.039 IN |
| Material | : | 304 Stainless Steel |
| Maximum Pressure | : | 200 PSI |
| Temperature Rating | : | 0 - 250 DEG F |
| Industry Standards | : | NSF International, CSA Certified, UPC Approved, ANSI Certified, IAPMO Certified |
Viega ProPress is the original press pipe joining system. Pressing pipe connections saves time and labor compared to traditional soldering and Viega ProPress offers more features and benefits than any other imitation press system.
- Smart Connect® feature
- Fast and easy use
- Flameless
- Permanent connection
- Consistent professional appearance
- Less equipment required
- Environmentally friendly connection system
- EPDM sealing element
