10 VIC 717 CK VLV

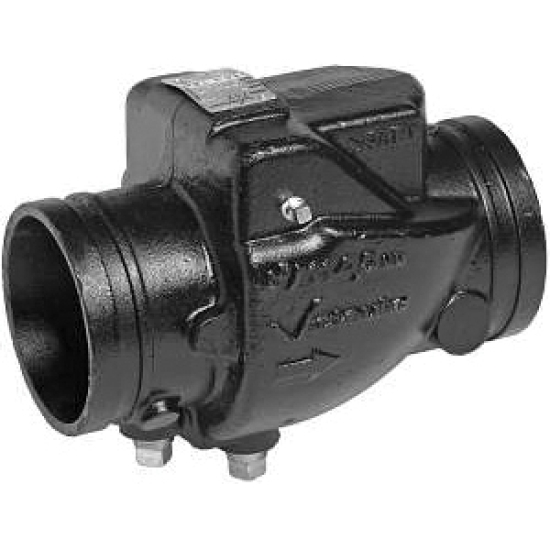

Victaulic FireLock™ 717 V100717PE0 Check Valve, 10 IN, Ductile Iron, 365 PSI
- Manufacturer: Victaulic Company
- Brand: Victaulic
- MGPN: VIC VLV CK 717 10
- MPN: V100717PE0
- Min. Order Qty: 1
- Qty. Interval: 1
-
Availability:
- See All Availability
-
Price:
Victaulic FireLock™ 717 Check Valve, 10 IN Nominal, 365 PSI, Ductile Iron Body, Ductile Iron Seat, Material Standard: ASTM A536 Grade 65-45-12, Industry Standards: CCC Approved, CE Marked, cULus Listed, DNV, FM Approved, UKCA, 17 IN Width, Other Physical Dimension: 12-3/4 IN Actual OD, Additional Specifications: Disc Material: Aluminum Bronze, 100 LB Weight
| Sub Brand | : | FireLock™ |
| Item Name | : | Check Valve |
| Series/Model | : | 717 |
| Nominal Size | : | 10 IN |
| Pressure Rating | : | 365 PSI |
| Body Material | : | Ductile Iron |
| Seat Material | : | Ductile Iron |
| Material Standard | : | ASTM A536 Grade 65-45-12 |
| Industry Standards | : | CCC Approved, CE Marked, cULus Listed, DNV, FM Approved, UKCA |
| Width | : | 17 IN |
| Other Physical Dimension | : | 12-3/4 IN Actual OD |
| Additional Specifications | : | Disc Material: Aluminum Bronze |
| Weight | : | 100 LB |
- Features an elastomer encapsulated disc with an electroless nickel-plated seat
