14 VIC 300 E AGS BUTTERFLY VALVE W/GEAR

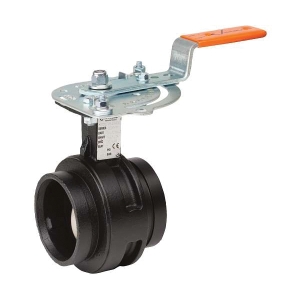

Victaulic Vic-300 MasterSeal™ Series 761 W140761SE3 Butterfly Valve With Grade E Seat, 14 IN, Grooved, 300 PSI
- Manufacturer: Victaulic Company
- Brand: Victaulic
- MGPN: VIC VLV BF 300 GEAR AGS 14
- MPN: W140761SE3
- UPC: 688304159527
- Min. Order Qty: 1
- Qty. Interval: 1
-
Availability:
- See All Availability
-
Price:
Victaulic Victaulic Vic-300 MasterSeal™ Butterfly Valve With Grade E Seat, Vic-300 MasterSeal™, Butterfly Valve With Grade E Seat, Series/Model: Series 761, 14 IN Nominal, Connection Type: Grooved, 300 PSI, -30 To 230 DEG F, Ductile Iron Body, Gear Operator, 416 Stainless Steel Stem, Ductile Iron Disc Trim, EPDM Seat, Material Standard: Body: ASTM A536 Grade 65-45-12, Finish/Color: Black, Victaulic, 197.500 LB Weight
| Sub Brand | : | Vic-300 MasterSeal™ |
| Item Name | : | Butterfly Valve With Grade E Seat |
| Series/Model | : | Series 761 |
| Nominal Size | : | 14 IN |
| Connection Type | : | Grooved |
| Pressure Rating | : | 300 PSI |
| Temperature Rating | : | -30 To 230 DEG F |
| Body Material | : | Ductile Iron |
| Operator Type | : | Gear |
| Stem Material | : | 416 Stainless Steel |
| Trim Material | : | Ductile Iron Disc |
| Seat Material | : | EPDM |
| Material Standard | : | Body: ASTM A536 Grade 65-45-12 |
| Finish/Color | : | Black |
| Brand | : | Victaulic |
| Weight | : | 197.500 LB |
- Designed for bi-directional, dead-end services to full working pressure
- Pressures up to 300 PSI/2068 KPA/21 BAR
