1/2 VIC P589 H PFSS 304 BALL VALVE

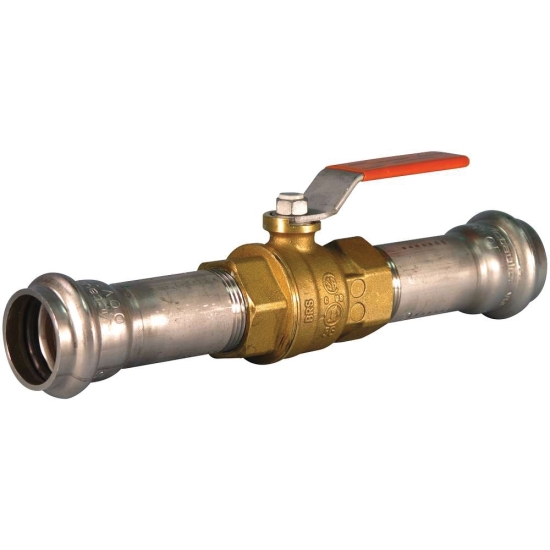

Victaulic Vic-Press™ Style P589 V004589XH5 Ball Valve With Grade H Seal, 1/2 IN, Press, SCH 10S
- Manufacturer: Victaulic Company
- Brand: Victaulic
- MGPN: VIC PFSS VLV BA P589 H 1/2
- MPN: V004589XH5
- UPC: 883481066495
- Min. Order Qty: 1
- Qty. Interval: 1
-
Availability:
- See All Availability
-
Price:
Victaulic Vic-Press™ Ball Valve With Grade H Seal, Type: 3-Piece, Vic-Press™, Ball Valve With Grade H Seal, Series/Model: Style P589, 1/2 IN Nominal, Connection Type: Press, 300 PSI, Pressure Class: SCH 10S, -20 To 210 DEG F, Brass Body, Carbon Steel Handle, Brass Stem, Brass Ball Trim, PTFE Seat, HNBR Seal, Material Standard: Body And Ball: ASTM B30, Stem: ASTM B16, 9.03 IN Width, Other Physical Dimension: 1.42 IN Inlet Center To Top Of Handle, 3.03 IN Handle Length, Additional Specifications: Suitable For Use With: Schedule 10S Type 316/316L Stainless Steel Pipe, 1.001 LB Weight
| Sub Brand | : | Vic-Press™ |
| Item Name | : | Ball Valve With Grade H Seal |
| Type | : | 3-Piece |
| Series/Model | : | Style P589 |
| Nominal Size | : | 1/2 IN |
| Connection Type | : | Press |
| Pressure Rating | : | 300 PSI |
| Pressure Class | : | SCH 10S |
| Temperature Rating | : | -20 To 210 DEG F |
| Body Material | : | Brass |
| Handle Material | : | Carbon Steel |
| Stem Material | : | Brass |
| Trim Material | : | Brass Ball |
| Seat Material | : | PTFE |
| Seal Material | : | HNBR |
| Material Standard | : | Body And Ball: ASTM B30, Stem: ASTM B16 |
| Width | : | 9.03 IN |
| Other Physical Dimension | : | 1.42 IN Inlet Center To Top Of Handle, 3.03 IN Handle Length |
| Additional Specifications | : | Suitable For Use With: Schedule 10S Type 316/316L Stainless Steel Pipe |
| Weight | : | 1.001 LB |
- Fast, easy reliable way to join SCH 10S stainless steel pipe
- Series P589 ball valve is a full port valve with Vic-Press™ SCH 10S ends for fast, easy installation
- The valve, with Vic-Press™ SCH 10S ends, is designed for service to 300 PSI/2068 KPA
- The valve body is constructed from forged brass, the ball is chrome-plated brass and seals on PTFE seats
- A hollow ball design eliminates unnecessary weight while maintaining flow and mechanical strength
- PTFE seats and washers reduce the friction coefficient which eases valve operation
