1/2 VIC P508 H PFSS 316 SLIP CPG

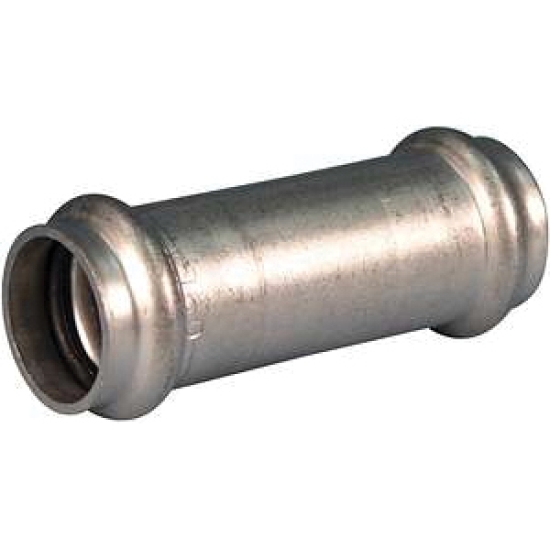

Victaulic Vic-Press™ Style P508 F004508XH5 Slip Coupling With Grade H Seal, 1/2 IN, Press, SCH 10S, 316L Stainless Steel
- Manufacturer: Victaulic Company
- Brand: Victaulic
- MGPN: VIC PFSS CPG P508 H 1/2
- MPN: F004508XH5
- UPC: 883481065368
- Min. Order Qty: 1
- Qty. Interval: 1
-
Availability:
- See All Availability
-
Price:
Victaulic Vic-Press™ Slip Coupling With Grade H Seal, Vic-Press™, Slip Coupling With Grade H Seal, Series/Model: Style P508, 1/2 IN Nominal, Connection Type: Press, SCH 10S, 316L Stainless Steel, Material Standard: ASTM A312, 0.84 IN Outside Diameter, 3.79 IN Length, 500 PSI Maximum Pressure, -20 To 210 DEG F, Industry Standards: NSF Certified, FM Approved, Other Physical Dimension: 1.06 IN Minimum Tube Insert, Additional Specifications: Suitable For Use With: Schedule 10S Type 316/316L Stainless Steel Pipe, 0.300 LB Weight
| Sub Brand | : | Vic-Press™ |
| Item Name | : | Slip Coupling With Grade H Seal |
| Series/Model | : | Style P508 |
| Nominal Size | : | 1/2 IN |
| Connection Type | : | Press |
| Schedule | : | SCH 10S |
| Material | : | 316L Stainless Steel |
| Material Standard | : | ASTM A312 |
| Outside Diameter | : | 0.84 IN |
| Length | : | 3.79 IN |
| Maximum Pressure | : | 500 PSI |
| Temperature Rating | : | -20 To 210 DEG F |
| Industry Standards | : | NSF Certified, FM Approved |
| Other Physical Dimension | : | 1.06 IN Minimum Tube Insert |
| Additional Specifications | : | Suitable For Use With: Schedule 10S Type 316/316L Stainless Steel Pipe |
| Weight | : | 0.300 LB |
- Fast, easy reliable way to join SCH 10S stainless steel pipe
- Pressures up to 500 PSI/3447 KPA/34 BAR
