1-1/2x1/2 VIC 72 FIP OUTLET COUP

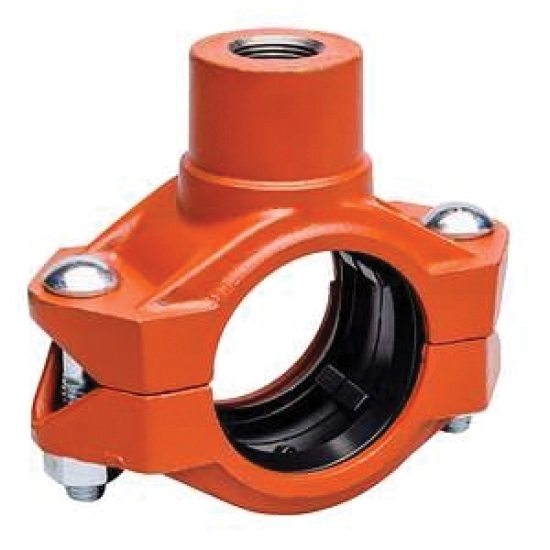

Victaulic Style 72 LB26072PEF Outlet Coupling With Grade E Gasket, 1-1/2 X 1/2 IN, FNPT, Ductile Iron
- Manufacturer: Victaulic Company
- Brand: Victaulic
- MGPN: VIC CPG 72F 1-1/2X1/2
- MPN: LB26072PEF
- UPC: 688304485787
- Min. Order Qty: 1
- Qty. Interval: 1
-
Availability:
- See All Availability
-
Price:
Victaulic Outlet Coupling With Grade E Gasket, Outlet Coupling With Grade E Gasket, Series/Model: Style 72, 1-1/2 X 1/2 IN Nominal, Connection Type: FNPT, Ductile Iron, Material Standard: ASTM A536 Grade 65-45-12, Finish/Color: Orange Enamel Painted, 1.9 X 0.84 IN Outside Diameter, 4-1/2 IN Length, 500 PSI Maximum Pressure, -30 To 230 DEG F, Industry Standards: cULus Listed, FM And CE EN 10311 CPR (EU) No. 305/2011, UKCA BS EN 10311 CPR (UK) 2019 No 465, Other Physical Dimension: 2-3/4 IN Width, 0.75 - 0.88 IN Allowable Pipe End Separation, (2) 3/8 X 2 IN Bolt/Nut, 2.94 IN Body Outside Diameter, 2.63 IN Center To Outlet, 2.500 LB Weight
| Item Name | : | Outlet Coupling With Grade E Gasket |
| Series/Model | : | Style 72 |
| Nominal Size | : | 1-1/2 X 1/2 IN |
| Connection Type | : | FNPT |
| Material | : | Ductile Iron |
| Material Standard | : | ASTM A536 Grade 65-45-12 |
| Finish/Color | : | Orange Enamel Painted |
| Outside Diameter | : | 1.9 X 0.84 IN |
| Length | : | 4-1/2 IN |
| Maximum Pressure | : | 500 PSI |
| Temperature Rating | : | -30 To 230 DEG F |
| Industry Standards | : | cULus Listed, FM And CE EN 10311 CPR (EU) No. 305/2011, UKCA BS EN 10311 CPR (UK) 2019 No 465 |
| Other Physical Dimension | : | 2-3/4 IN Width, 0.75 - 0.88 IN Allowable Pipe End Separation, (2) 3/8 X 2 IN Bolt/Nut, 2.94 IN Body Outside Diameter, 2.63 IN Center To Outlet |
| Weight | : | 2.500 LB |
- Joining device to provide an integral reducing outlet
- Pressures up to 500 PSI/3447 KPA/34 BAR
Brochure/Catalog Name
