4 VIC 177 GALV COUPLING WITH T GASKET

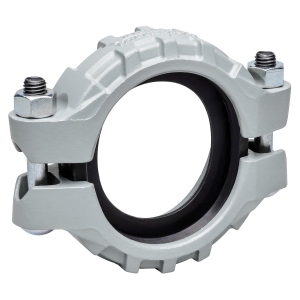

Victaulic QuickVic™ Style 177N L040177GTN Flexible Coupling With Grade EHP Gasket, 4 IN, Grooved, Ductile Iron
- Manufacturer: Victaulic Company
- Brand: Victaulic
- MGPN: 400G177CT
- MPN: L040177GTN
- UPC: 883481355292
- Min. Order Qty: 1
- Qty. Interval: 1
-
Availability:
- See All Availability
-
Price:
Victaulic QuickVic™ Flexible Coupling With Grade EHP Gasket, QuickVic™, Flexible Coupling With Grade EHP Gasket, Series/Model: Style 177N, 4 IN Nominal, Connection Type: Grooved, Ductile Iron, Material Standard: ASTM A536 Grade 65-45-12, Finish/Color: Hot-Dipped Galvanized, 4-1/2 IN Outside Diameter, 9-1/2 IN Length, 1000 PSI Maximum Pressure, -20 To 180 DEG F, Industry Standards: cULus Listed, FM And CE EN 10311 CPR (EU) No. 305/2011, Other Physical Dimension: 2.38 IN Width, 0.38 IN Full Nominal Pipe End Separation, (2) 5/8 X 4 IN Bolt/Nut, 6.38 IN Body Outside Diameter, 7.400 LB Weight
| Sub Brand | : | QuickVic™ |
| Item Name | : | Flexible Coupling With Grade EHP Gasket |
| Series/Model | : | Style 177N |
| Nominal Size | : | 4 IN |
| Connection Type | : | Grooved |
| Material | : | Ductile Iron |
| Material Standard | : | ASTM A536 Grade 65-45-12 |
| Finish/Color | : | Hot-Dipped Galvanized |
| Outside Diameter | : | 4-1/2 IN |
| Length | : | 9-1/2 IN |
| Maximum Pressure | : | 1000 PSI |
| Temperature Rating | : | -20 To 180 DEG F |
| Industry Standards | : | cULus Listed, FM And CE EN 10311 CPR (EU) No. 305/2011 |
| Other Physical Dimension | : | 2.38 IN Width, 0.38 IN Full Nominal Pipe End Separation, (2) 5/8 X 4 IN Bolt/Nut, 6.38 IN Body Outside Diameter |
| Weight | : | 7.400 LB |
- Pressures up to 1000 PSI/6895 KPA/69 BAR
