3 VIC 109 PNTD FIRELOCK IR COUPLING

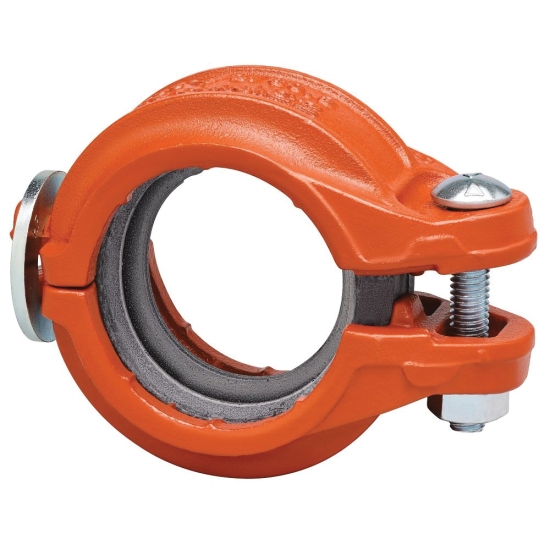

Victaulic FireLock™, Installation-Ready™ Style 109 L030109PE2 Rigid Coupling With Grade E Gasket, 3 IN, Grooved
- Manufacturer: Victaulic Company
- Brand: Victaulic
- MGPN: 300P109CE
- MPN: L030109PE2
- UPC: 195150107911
- Min. Order Qty: 1
- Qty. Interval: 1
-
Availability:
- See All Availability
-
Price:
Victaulic FireLock™, Installation-Ready™ Rigid Coupling With Grade E Gasket, Type: Pre-Assembled, FireLock™, Installation-Ready™, Rigid Coupling With Grade E Gasket, Series/Model: Style 109, 3 IN Nominal, Connection Type: Grooved, Ductile Iron, Material Standard: ASTM A536 Grade 65-45-12, Finish/Color: Orange Enamel Painted, 3-1/2 IN Outside Diameter, 5.13 IN Length, 365 PSI Maximum Pressure, -40 DEG F, Industry Standards: cULus Listed, FM Approved, VDS 009N: G4090023, 109: G421013, LPCB LPS 1219: Issue 3.1 Cert/LPCB Ref. 104-1a/36, CE EN 10311 CPR (EU) No 305/2011, Other Physical Dimension: 2.07 IN Width, (1) 7/16 X 2-3/4 IN Bolt/Nut, 0.12 IN Allowable Pipe End Separation, Additional Specifications: End Load: 3512 LB Maximum, 2.640 LB Weight
| Sub Brand | : | FireLock™, Installation-Ready™ |
| Item Name | : | Rigid Coupling With Grade E Gasket |
| Type | : | Pre-Assembled |
| Series/Model | : | Style 109 |
| Nominal Size | : | 3 IN |
| Connection Type | : | Grooved |
| Material | : | Ductile Iron |
| Material Standard | : | ASTM A536 Grade 65-45-12 |
| Finish/Color | : | Orange Enamel Painted |
| Outside Diameter | : | 3-1/2 IN |
| Length | : | 5.13 IN |
| Maximum Pressure | : | 365 PSI |
| Temperature Rating | : | -40 DEG F |
| Industry Standards | : | cULus Listed, FM Approved, VDS 009N: G4090023, 109: G421013, LPCB LPS 1219: Issue 3.1 Cert/LPCB Ref. 104-1a/36, CE EN 10311 CPR (EU) No 305/2011 |
| Other Physical Dimension | : | 2.07 IN Width, (1) 7/16 X 2-3/4 IN Bolt/Nut, 0.12 IN Allowable Pipe End Separation |
| Additional Specifications | : | End Load: 3512 LB Maximum |
| Weight | : | 2.640 LB |
- Added confidence of single pad to pad visual confirmation
- Pressures up to 365 PSI/2517 KPA/25 BAR
