1-1/2 751 GRVD VERTICAL PRE-TRIMMED ALARM CHECK VALVE

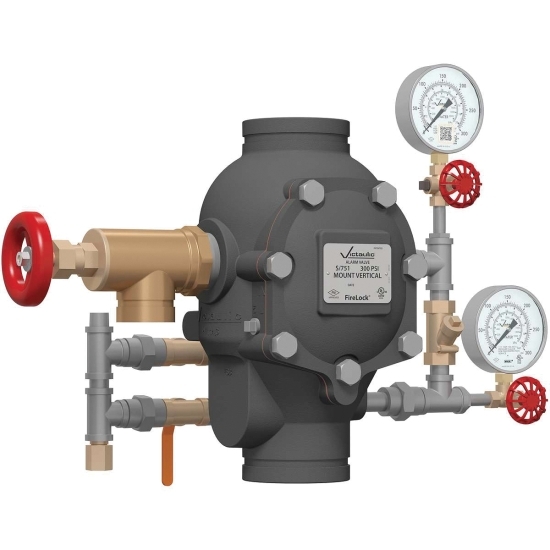

Victaulic FireLock 751 Ductile Iron Vertical Pre-Trimmed Alarm Check Valve, 1-1/2 IN, Grooved End
- Manufacturer: Victaulic Company
- Brand: Victaulic
- MGPN: 150751VACV
- MPN: S014751201
- UPC: 688304273056
- Min. Order Qty: 1
- Qty. Interval: 1
-
Availability:
- See All Availability
-
Price:
FireLock Vertical Pre-Trimmed Alarm Check Valve, Series/Model: Series 751, Nominal Size: 1-1/2 IN, Connection Type: Grooved End, Pressure Rating: 300 PSI, 600 PSI Hydrostatically Tested, Ductile Iron Body Material, Seal Material: EPDM Clapper, Material Standard: Body: ASTM A536 Grade 65-45-12, Clapper Seal: ASTM D2000, Industry Standards: C/US UL Listed, FM Approved, 21 IN Width, 18-1/2 IN Height, Lead Free: No, Other Physical Dimension: 12-1/2 IN
| Sub Brand | : | FireLock |
| Item Name | : | Alarm Check Valve |
| Type | : | Vertical Pre-Trimmed |
| Series/Model | : | Series 751 |
| Nominal Size | : | 1-1/2 IN |
| Connection Type | : | Grooved End |
| Pressure Rating | : | 300 PSI, 600 PSI Hydrostatically Tested |
| Body Material | : | Ductile Iron |
| Seal Material | : | EPDM Clapper |
| Material Standard | : | Body: ASTM A536 Grade 65-45-12, Clapper Seal: ASTM D2000 |
| Industry Standards | : | C/US UL Listed, FM Approved |
| Width | : | 21 IN |
| Height | : | 18-1/2 IN |
| Lead Free | : | No |
| Other Physical Dimension | : | 12-1/2 IN |
| Weight | : | 31.000 LB |
- Prevents the reverse flow of water from the system piping to the water supply
- Pressure rated up to 300 PSI/2068 KPA/21 BAR
