3/4 SARCO TD42H TRAP W/BLOWDOWN 73651

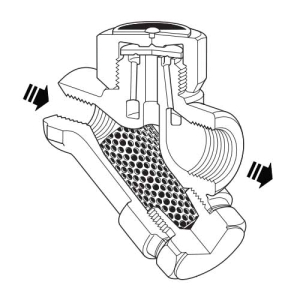

Spirax Sarco Model TD42H 73651 Thermodynamic Steam Trap, 3/4 IN, FNPT, 914 PSIG, Cast Iron Body
- Manufacturer: Spirax Sarco Inc
- Brand: Spirax Sarco
- MGPN: SAR TRAP TD42H BD 3/4
- MPN: 73651
- Min. Order Qty: 1
- Qty. Interval: 1
-
Availability:
- See All Availability
-
Price:
Spirax Sarco Thermodynamic Steam Trap, Type: High Capacity, Thermodynamic Steam Trap, Series/Model: Model TD42H, 3/4 IN Nominal, Connection Type: FNPT, 914 PSIG, Cast Iron Body, Stainless Steel Disc, Material Standard: ASTM A743 Grade CA40F, AISI 416, BS 1449 420 S45, 752 DEG F, 107 MM Height
| Item Name | : | Thermodynamic Steam Trap |
| Type | : | High Capacity |
| Series/Model | : | Model TD42H |
| Nominal Size | : | 3/4 IN |
| Connection Type | : | FNPT |
| Pressure Rating | : | 914 PSIG |
| Body Material | : | Cast Iron |
| Disc Material | : | Stainless Steel |
| Material Standard | : | ASTM A743 Grade CA40F, AISI 416, BS 1449 420 S45 |
| Temperature Rating | : | 752 DEG F |
| Height | : | 107 MM |
- All external body surfaces have an electroless nickel preparation (ENP) which is both energy saving and oxidation resistant
