1/2 SARCO B-1H 250 INVERTED
Spirax Sarco Series B/Model B1H-250 64152 Inverted Bucket Steam Trap, 1/2 IN, FNPT, 250 PSIG, Cast Iron Body
- Manufacturer: Spirax Sarco Inc
- Brand: Spirax Sarco
- MGPN: SAR TRAP B1H 250 1/2
- MPN: 64152
- Min. Order Qty: 1
- Qty. Interval: 1
-
Availability:
- See All Availability
-
Price:

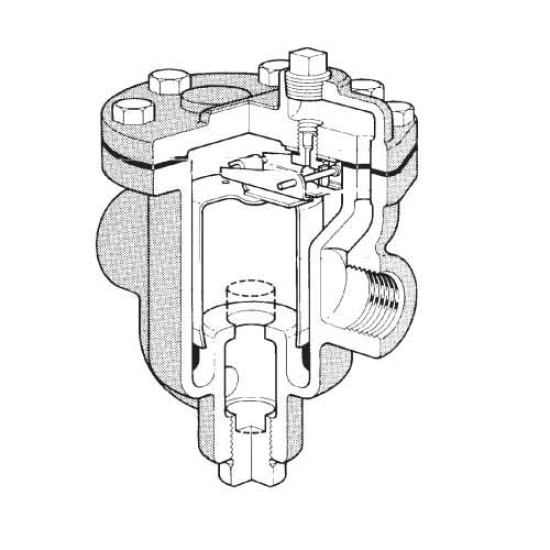

The trap contains an inverted bucket mechanism which responds to the difference in density between steam and condensate. The discharge action is cyclic. Condensate is discharged close to steam temperature.
Spirax Sarco Inverted Bucket Steam Trap, Inverted Bucket Steam Trap, Series/Model: Series B/Model B1H-250, 1/2 IN Nominal, Connection Type: FNPT, 250 PSIG, Cast Iron Body, Material Standard: ASTM A126 Class B, 450 DEG F, 5 IN Length, Domestic/Import: Domestic
| Item Name | : | Inverted Bucket Steam Trap |
| Series/Model | : | Series B/Model B1H-250 |
| Nominal Size | : | 1/2 IN |
| Connection Type | : | FNPT |
| Pressure Rating | : | 250 PSIG |
| Body Material | : | Cast Iron |
| Material Standard | : | ASTM A126 Class B |
| Temperature Rating | : | 450 DEG F |
| Length | : | 5 IN |
| Domestic/Import | : | Domestic |
Installation Instruction Name
