1/2 NPT TSS-300 TRAP

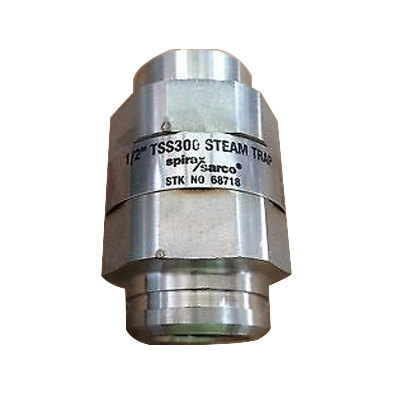

Spirax Sarco TSS-300 304 Stainless Steel Sealed Balanced Pressure Thermostatic Steam Trap, 1/2 IN, NPT, 300 PSI
- Manufacturer: Spirax Sarco Inc
- Brand: Spirax Sarco
- MGPN: S62002
- MPN: 62002
- Min. Order Qty: 1
- Qty. Interval: 1
-
Availability:
- See All Availability
-
Price:
Balanced Pressure Sealed Thermostatic Steam Trap, Series/Model: Model TSS-300, Nominal Size: 1/2 IN, Connection Type: NPT, Pressure Rating: 300 PSI, 304 Stainless Steel Body Material, Temperature Rating: 385 DEG C Maximum Allowable, Length: 1-1/2 IN, Other Physical Dimension: 2-1/2 IN Height
| Item Name | : | Sealed Thermostatic Steam Trap |
| Type | : | Balanced Pressure |
| Series/Model | : | Model TSS-300 |
| Nominal Size | : | 1/2 IN |
| Connection Type | : | NPT |
| Pressure Rating | : | 300 PSI |
| Body Material | : | 304 Stainless Steel |
| Temperature Rating | : | 385 DEG C Maximum Allowable |
| Length | : | 1-1/2 IN |
| Other Physical Dimension | : | 2-1/2 IN Height |
| Weight | : | 0.700 LB |
- The welded stainless steel element is self-adjusting over the entire operating pressure range and will discharge condensate at approximately 20 DEG F below saturated steam temperature
- Trap may be installed in horizontal or vertical pipelines
Application: Used in critical and non-critical steam tracing systems and steam main drips
Instruction/Installation Manual
