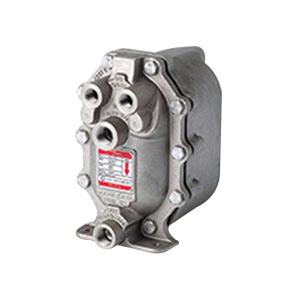

3/4 NPT APT10-4.5 AUTOMATIC PUMP TRAP

The compact low profile modular pump trap system consists of the versatile APT 10-4.5 automatic pumping trap pre piped and mounted on a steel base the SPT1 module includes a condensate reservoir sized to accommodate pump cycle the module requires only service field connections for complete installation and fast startup.

Automatic Pump Trap, Series/Model: Model APT10-4.5, Nominal Size: 3/4 IN, Connection Type: NPT, Pressure Rating: 65 PSIG, Ductile Iron Body Material, Material Standard: EN JS 1025/ASTM A395, Temperature Rating: 155 DEG C, Length: 7.4 IN, Other Physical Dimension: 10.7 IN Height, 10-1/2 IN Width, Additional Specifications: Pump Discharge/Cycle: 0.6 GAL, Maximum Trapping Capacity: 3307 LB/HR, Maximum Pumping Capacity: 1268 LB/HR

For over 50 years, This has been involved with the design and manufacture of products for efficient condensate management. We have now developed a range of compact, condensate drainage systems in simple-to-install products. The APT has been designed to remove condensate from steam heat exchangers and process plant under all operating conditions and forms an integral part of the condensate removal process.

• Pump trap is a non-electric combination pump and trap which transfers high temperature condensate from a low-point, low pressure or vacuum space to an area of higher pressure or elevation
• This self contained unit uses steam as the pumping force to remove condensate from process equipment under all operating conditions

• Specification Sheet https://www.macombgroup.com//ASSETS/DOCUMENTS/ITEMS/EN/SpiraxSarco_6120181_Specification_Sheet.pdf
