3/4 NPT FA-30 DRAIN TRAP

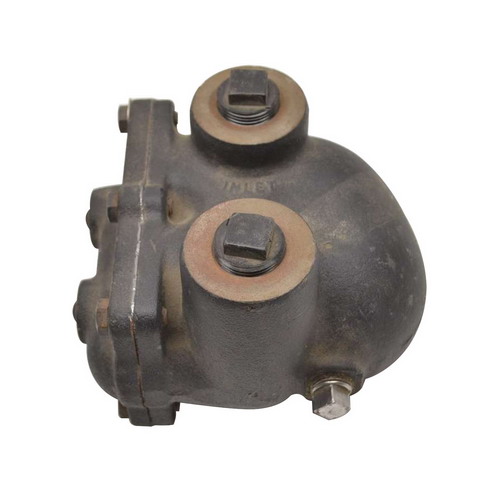

Spirax Sarco FA-30 Cast Iron Parallel Flow Pattern Liquid Drain Trap, 3/4 IN, NPT, 30 PSI
- Manufacturer: Spirax Sarco Inc
- Brand: Spirax Sarco
- MGPN: S60971
- MPN: 60971
- Min. Order Qty: 1
- Qty. Interval: 1
-
Availability:
- See All Availability
-
Price:
The float-operated liquid drain trap discharges continuously in direct response to variations in liquid flow rate, assuring thorough drainage of the system.
Parallel Flow Pattern Liquid Drain Trap, Series/Model: Model FA-30, Nominal Size: 3/4 IN, Connection Type: NPT, Pressure Rating: 30 PSI, 0.218 IN Orifice, Cast Iron Body Material, Material Standard: ASTM A126 Grade B, Temperature Rating: 232 DEG C, Length: 4.6 IN, Other Physical Dimension: 6.2 IN Width, 5-3/4 IN
| Item Name | : | Parallel Flow Pattern Liquid Drain Trap |
| Series/Model | : | Model FA-30 |
| Nominal Size | : | 3/4 IN |
| Connection Type | : | NPT |
| Pressure Rating | : | 30 PSI |
| Orifice | : | 0.218 IN |
| Body Material | : | Cast Iron |
| Material Standard | : | ASTM A126 Grade B |
| Temperature Rating | : | 232 DEG C |
| Length | : | 4.6 IN |
| Other Physical Dimension | : | 6.2 IN Width, 5-3/4 IN |
| Weight | : | 9.000 LB |
- The float-operated liquid drain trap discharges continuously in direct response to variations in liquid flow rate, assuring thorough drainage of the system
- ASTM A449 carbon steel cover screws
- Graphite cover gasket
- ASTM A126 CL grade B cast iron cover
- AISI 420F Stainless steel valve seat
- AISI 302 Stainless steel valve seat gasket
- AISI 304 Stainless steel float
- AISI 301/304 Stainless steel lever and seat bracket
- AISI 302/303 Stainless steel pivot pin
- AISI 300/440 Stainless Steel valve head and bracket assembly
- ASTM B16 brass plug
- ASTM A240 stainless steel plug gasket
Application: Used in receiver and air line drainage, draining liquid from its vapor phase
