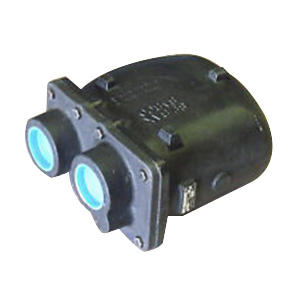

2 NPT FTB-20 TRAP

Super Capacity Parallel Flow Pattern Float And Thermostatic Steam Trap, Series/Model: Model FTB-20, Nominal Size: 2 IN, Connection Type: NPT, Pressure Rating: 20 PSI, 0.937 IN Orifice, Cast Iron Body Material, Material Standard: ASTM A126 Grade B, Temperature Rating: 232 DEG C, Length: 5.9 IN, Other Physical Dimension: 12.2 IN Width, 10.7 IN Height, Additional Specifications: Capacity: 25000 LB/HR

The FTB range of Super Capacity Float & Thermostatic steam traps are rugged cast iron products designed to handle large heat exchanger condensate loads to 100000 LB/HR. The stainless steel air vent, fl oat and valve eliminate air binding, resist corrosion and allow for continuous drainage of condensate.

• The trap contains afloat valves mechanism which modulates to discharge condensate continuously at steam temperature
• Noncondensible gases are released by a separate internal balanced pressure thermostatic air vent
• ASTM A449 carbon steel cover screws
• ASTM A126 CL grade B cover
• Stainless steel valve seat, valve seat gasket, ball float, air vent assembly, air vent head, air vent seat, main valve assembly housing, pivot pin, valve head, float arm, seat bracket, head bracket, stop, link
• Graphite cover gasket

Application: Used in all process heat exchange equipment, particularly when controlled by modulating temperature control valves; unit heaters and air heating coils

• Specification Sheet https://www.macombgroup.com//ASSETS/DOCUMENTS/ITEMS/EN/SpiraxSarco_58040_Specification_Sheet.pdf
