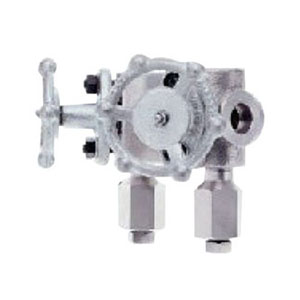

UBP32 TRAP W/STD CAPSULE 12 DEG

The UBP32 is a maintenance free sealed balanced pressure steam trap manufactured in stainless steel It can also be supplied with an inbuilt check valve designated UBP32CV when installed with a suitable pipeline connector the UBP32 can easily and simply be removed without breaking into the pipeline thus speeding up trap replacement with minimal system downtime pipeline connectors are available as screwed, socket weld and flanged the body and cover meet typical industry standards including Charpy impact testing of 27J at -30 DEG C.

Universal Balanced Pressure Thermostatic Steam Trap With Standard Capsule, Series/Model: Model UBP32, Pressure Rating: 464 PSIG, 0.157 IN Orifice, 304 Stainless Steel Body Material, Material Standard: ASTM A351 Grade CF8, Temperature Rating: 300 DEG C

The UBP32 is a maintenance free sealed balanced pressure steam trap manufactured in stainless steel - It can also be supplied with an inbuilt check valve designated UBP32CV. When installed with a suitable pipeline connector the UBP32 can easily and simply be removed without breaking into the pipeline thus speeding up trap replacement with minimal system downtime. Pipeline connectors are available with screwed, socket weld and flanged connections.

• As standard the UBP32 is supplied with a thermostatic capsule (STD) which operates approximately 12 DEG C below steam saturation temperature
• It can also be supplied with capsules operating near to steam 4 DEG C below (NTS) or sub cooled 22 DEG C below (SUB)
• The welded stainless steel element is self-adjusting over the entire operating pressure range and will discharge condensate at approximately 22 DEG F below saturated steam temperature
• The element is resistant to water hammer
• The connector can be installed in either horizontal or vertical piping, and the trap is easily removed without disturbing the pipework

• Specification Sheet https://www.macombgroup.com//ASSETS/DOCUMENTS/ITEMS/EN/SpiraxSarco_1270700_Specification_Sheet.pdf
