ROTOHAMMER CL9 DI RIM &

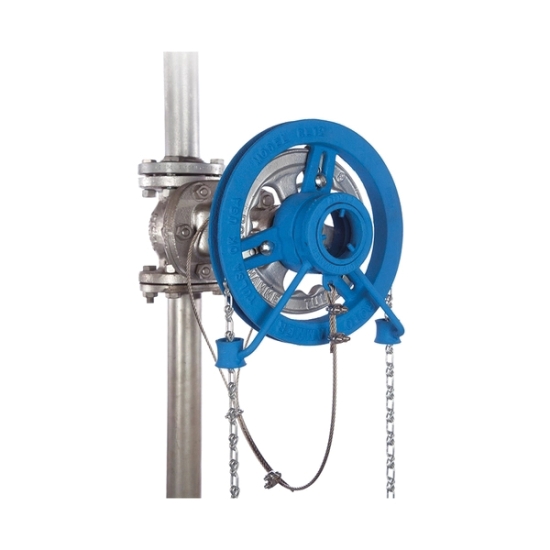

Rotork® CL Series CL9 Clamp On Chain Wheel, 9-3/4 IN H, Ductile Iron
- Manufacturer: Rotork
- Brand: Rotork
- MGPN: ROTO CL9
- MPN: CL9
- Min. Order Qty: 1
- Qty. Interval: 1
-
Availability:
- See All Availability
-
Price:
The 'CL' Series allows for safe and controlled access to valves that are in awkward or difficult situations. They can be installed in minutes and are an easy and inexpensive way of ensuring both employee safety and effective valve operation.
Rotork® Clamp On Chain Wheel, 9-3/4 IN Height, Item Name: Clamp On Chain Wheel, Ductile Iron, Other Physical Dimension: 3.81 IN Inner Slot Diameter, 6.31 IN Outer Slot Diameter, 2.31 IN Hub Opening, 0.344 IN Slot Width, 3.06 IN Rear Opening, 1.19 IN Rim Thickness, 3.12 IN Depth, Series/Model: CL Series, #1/0, Additional Specifications: Hand Wheel Outside Diameter: 7-3/4 - 9 IN
| Additional Specifications | : | Hand Wheel Outside Diameter: 7-3/4 - 9 IN |
| Height | : | 9-3/4 IN |
| Item Name | : | Clamp On Chain Wheel |
| Material | : | Ductile Iron |
| Other Physical Dimension | : | 3.81 IN Inner Slot Diameter, 6.31 IN Outer Slot Diameter, 2.31 IN Hub Opening, 0.344 IN Slot Width, 3.06 IN Rear Opening, 1.19 IN Rim Thickness, 3.12 IN Depth |
| Series/Model | : | CL Series |
| Size | : | #1/0 |
- Ductile iron clamp-on chain sprocket fits hand wheel sizes from 51 to 660 MM (2 to 26 IN) in diameter
- All units come complete with sprocket wheel, chain guide, set collar, zinc plated hardware and installation instructions
