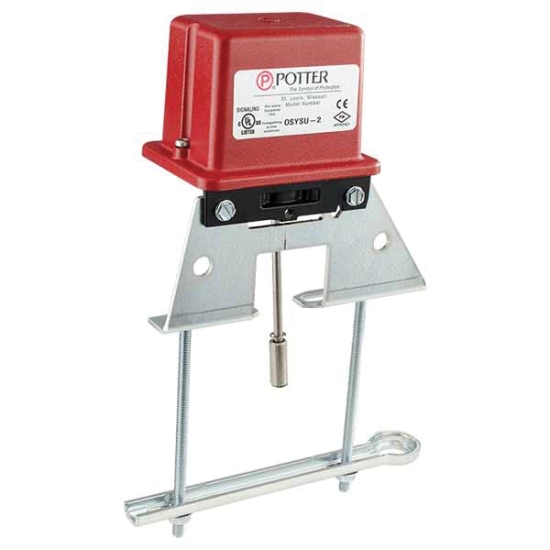

#OSYS-U-A1 TAMPER SWITCH

The OSYSU is used to monitor the open position of an OS&Y (outside screw and yoke) type gate valve. These switches mount conveniently to most OS&Y valves ranging in size from 2 - 12 IN. They will mount on some valves as small as 1/2 IN. The cover is held in place by two tamper-resistant screws that require a special tool to remove. The tool is furnished with each device.

POTTER® Tamper Switch, Type: Single Contact, Tamper Switch, Series/Model: Model OSYS-U-A1, 125/250 VAC, 24/30 VDC, 10 A At 125/250 VAC, 2 A At 30 VDC, 10 MA At 24 VDC, Composite/Die Cast, Finish/Color: Black Powder Coated, Industry Standards: cULus Listed, CE Marked, FM Approved, LPCB, RoHS Compliant, IP65, IP67, NEMA 4X, 6P Enclosure, Other Physical Dimension: 6.19 IN Width, 3.05 IN Depth, 9.36 IN Height, Additional Specifications: Temperature Range: -40 To 140 DEG F, Contact Configuration: (2) SPDT

• Visual switch indicators
• Two conduit entrances
• Adjustable length trip rod
• Accommodates up to 12 AWG wire
• Three position switch detects tampering and valve closure
• Knurled mounting bracket prevents slipping
• Fine adjustment feature for fast, easy installation
