SKINNER SOLENOID VALVE BODY

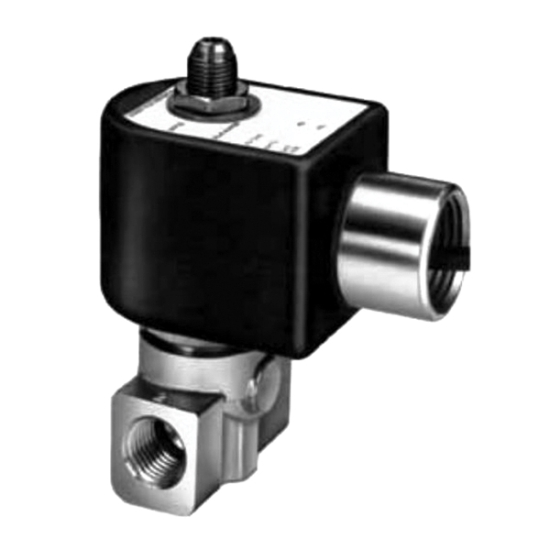

Parker Skinner™ 7133TBN2NV00 Brass 3-Way Universal Multi/Dual Purpose Solenoid Valve Body, 1/4 IN, FNPT
- Manufacturer: Parker Hannifin Corp
- Brand: Parker
- MGPN: 7133TBN2NV00
- MPN: 7133TBN2NV00
- Min. Order Qty: 1
- Qty. Interval: 1
-
Availability:
- See All Availability
-
Price:
3-way direct acting valves are suitable for low to medium pressure applications that do not require a minimum operating pressure differential.
| Sub Brand | : | Skinner™ |
| Item Name | : | Solenoid Valve Body |
| Type | : | Universal, Multi/Dual Purpose |
| Nominal Size | : | 1/4 IN |
| Connection Type | : | FNPT |
| Number Of Ports/Ways | : | 3-Way |
| Actuation | : | Direct Acting |
| Media | : | Air, Water, Light Oil And Inert Gas |
| Pressure Rating | : | 0 PSI Minimum, 30 PSI Air/Inert Gas, Water And Light Oil |
| Temperature Rating | : | 185 DEG F |
| Orifice | : | 1/4 IN |
| Body Material | : | Brass |
| Seal Material | : | FKM |
| Power Rating | : | 10 W |
| Industry Standards | : | UL Listed And CSA Certified |
| Width | : | 2.76 IN |
| Height | : | 3.55 IN |
| Additional Specifications | : | Flow Co-Efficient (Cv): 0.31 |
| Brand | : | Parker |
| Anti-Water Hammer | : | No |
- Valves can be mounted in any position
- The preferred orientation is with the coil vertical and upright
- Lubricated air, inert gases, water, light oil (300 SSU) and additional fluids compatible with materials of construction
- Use of non-lubricated gaseous media can affect valve life
