2 LUBRICATOR

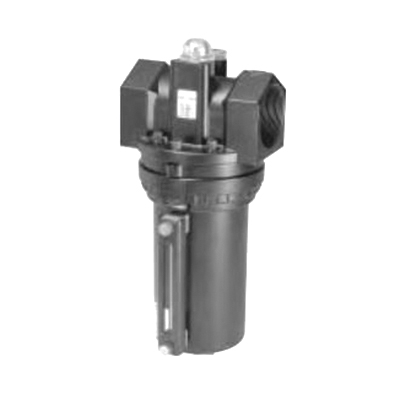

Parker 09L Zinc Alloy Die Cast Mist Lubricator, 2 IN, NPT, 1000 SCFM
- Manufacturer: Parker Hannifin Corp
- Brand: Parker
- MGPN: 20009L84B
- MPN: 09L84B
- Min. Order Qty: 1
- Qty. Interval: 1
-
Availability:
- See All Availability
-
Price:
General Industrial Mist Lubricator, Series/Model: Series 09L, Nominal Size: 2 IN, Pressure Rating: 0 - 150 PSI, Connection: NPT, Flow Rate: 1000 SCFM, Bowl Type: 1 QT Sight Gauge, Temperature Rating: 32 - 150 DEG F, 5-1/2 IN Width, 13.4 IN Height, Material: Zinc Alloy, Die Cast Body
| Item Name | : | Mist Lubricator |
| Type | : | General Industrial |
| Series/Model | : | Series 09L |
| Nominal Size | : | 2 IN |
| Pressure Rating | : | 0 - 150 PSI |
| Connection | : | NPT |
| Flow Rate | : | 1000 SCFM |
| Bowl Type | : | 1 QT Sight Gauge |
| Temperature Rating | : | 32 - 150 DEG F |
| Width | : | 5-1/2 IN |
| Height | : | 13.4 IN |
| Material | : | Zinc Alloy, Die Cast Body |
- Metal bowl with sight gauge and manual drain standard
- Transparent sight dome for 360 DEG visibility
- Bowl can be filled while air line is under pressure
- Proportional oil delivery over a wide range of air flows
- High flow 1000 SCFM
Brochure/Catalog
