3/4 BRASS SOLENOID VALVE N/C 120 VAC

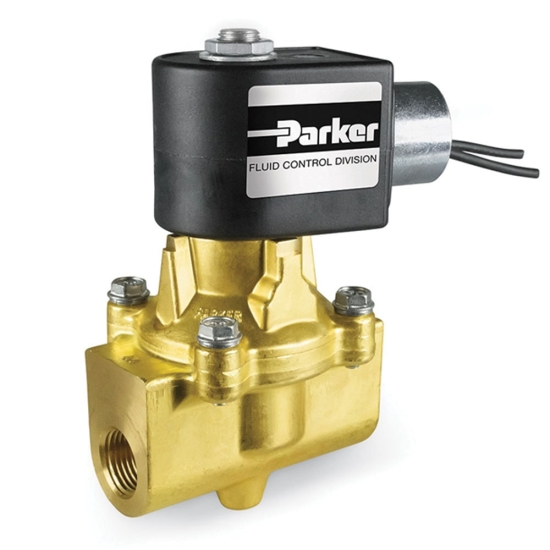

Parker Skinner™ 12F23C2148ACF4C05M Forged Brass 2-Way Normally Closed Solenoid Valve With Manual Override, 3/4 IN, FNPT, 110 - 120 VAC
- Manufacturer: Parker Hannifin Corp
- Brand: Parker
- MGPN: 12F23C2148ACF4C05M
- MPN: 12F23C2148ACF4C05M
- Min. Order Qty: 1
- Qty. Interval: 1
-
Availability:
- See All Availability
-
Price:
Parker's locking manual override option for 2-way and 3-way stainless steel and brass solenoid valves provide more application solutions. Solenoid valves are designed to start and stop the flow of media when directed by an electrical signal. When electricity is not available to shift the valve into the 'on' position, a mechanical method must be used. These valves have this option. Instances where non-electrical valve function may be required include checking a system during start up, trouble shooting a problem or operation in a power failure. For industrial processes where manual override is required, Parker solenoid valves with manual override are the ideal solution. Parker's fluid control division has always offered 4-way pneumatic valves for valve actuation with manual override. Now, manual override is an option in the multi-media solenoid valves as well.
| Sub Brand | : | Skinner™ |
| Item Name | : | Solenoid Valve With Manual Override |
| Nominal Size | : | 3/4 IN |
| Connection Type | : | FNPT |
| Number Of Ports/Ways | : | 2-Way |
| Actuation | : | Internal Pilot Operated |
| Configuration | : | Normally Closed |
| Media | : | Air, Water, Light Oil And Inert Gas |
| Pressure Rating | : | 0 PSI Minimum, 150 PSI Air/Inert Gas, 150 PSI Water, 150 PSI Light Oil |
| Temperature Rating | : | 180 DEG F |
| Orifice | : | 3/4 IN |
| Body Material | : | Forged Brass |
| Trim Material | : | NBR |
| Coil Insulation Class | : | Class 155 |
| Power Rating | : | 11 W |
| Voltage Rating | : | 110 - 120 VAC At 50/60 HZ |
| Enclosure | : | NEMA 4, 4X |
| Electrical Connection | : | 18 IN Leads |
| Industry Standards | : | UL Listed And CSA Certified |
| Width | : | 2.91 IN |
| Other Physical Dimension | : | 2.28 IN Depth, 3-3/8 IN Inlet Center To Top Of Valve |
| Brand | : | Parker |
| Anti-Water Hammer | : | No |
- Locking manual override
- Compact design
- Compatible with all coils in valve family
- Brass or stainless with NBR seals
- 2 IN NPT valves have a slow close feature to prevent water hammer
Brochure/Catalog
